CLAREX

by Nitto Jushi Kogyo Co., Ltd. The manufacturer of Optical Grade Cell-Cast Acrylic sheets.

Product Information

Blue Ocean® Screen

CLAREX Blue Ocean® Screen is manufactured by a new method which combines proprietary acrylic sheeting techniques and light distribution controlling techniques developed specifically for High Functional Projection Screens.

CLAREX Blue Ocean® Technology provides true-color reproduction, high resolution and image depth which gives audience a high level of visual experience.
Please ask for customization both optical and mechanical according to your application.

Rear Projection Screen

CLAREX BOS-C0451 provides images with good natural coloration because it reproduces the true color and almost no scintillation on the screen. Also, the wide viewing angle and excellent uniformity enables to use in many situation.

MIHARAYASUHIRO -Installations- Ophelia has a drean at Louvre Paris

CLAREX Blue Ocean Screen was exhibited at Carrousel du Louvre in collaboration with MIHARAYASUHIRO for Paris Fashion Week held at October 2011.

Ophelia has a Dream (Opens in a new window)

worked by WOW Oct_2011

※ Video can be viewed on PC sites only.

Line-Up
  • B-1003 : 1/2 Angle 25° / PG 1.7
  • BOS-C1906 : 1/2 Angle 30° / PG 1.2
  • BOS-C0451 : 1/2 Angle 42° / PG 0.85

※ Optical customization and/or 2D and 3D forming customization is available. Please ask your sales representatives.

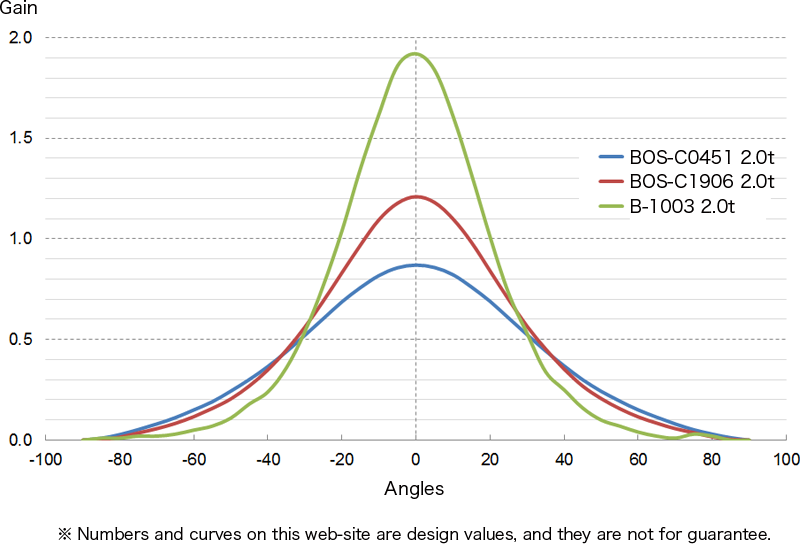

Viewing Angles
BOS 視野角グラフ
Lineup Transmission(%) Peak Gain 1/2 Angle
B-1003 50.0 1.7 25
BOS-C1906 47.0 1.2 30
BOS-C0451 45.0 0.85 42
Size

Max:200 inch size.

※ Screen frame is available as an option. Please ask your sales representatives.

Thickness
16:9

100" or below - 2.0mm / Over 100" - 3.0mm

4:3

80" or below - 2.0mm / Over 80" - 3.0mm

Application

Theater, Simulator

Examples of Products

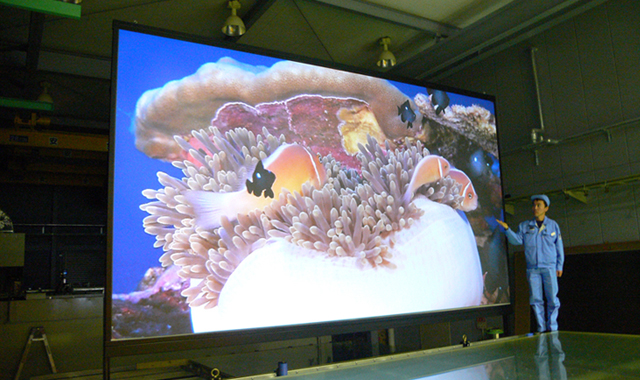

  • 200 inch size

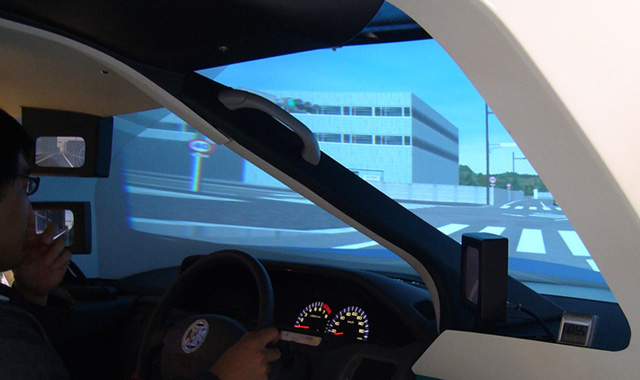

  • Simulator

BOS for Injection Molding

This is the screen utilizing the workability of acrylic material. By forming in three-dimensional, it creates eye-catching impact in amusement or advertising market. Pelletizing BOS material for injection molding is also available so that more complex shapes are possible to make.

Examples of Products

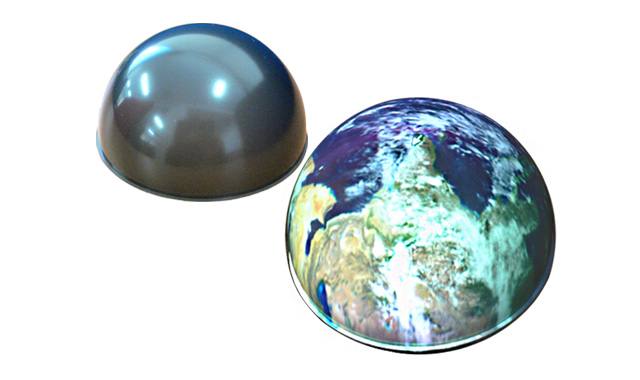

  • Dome Type

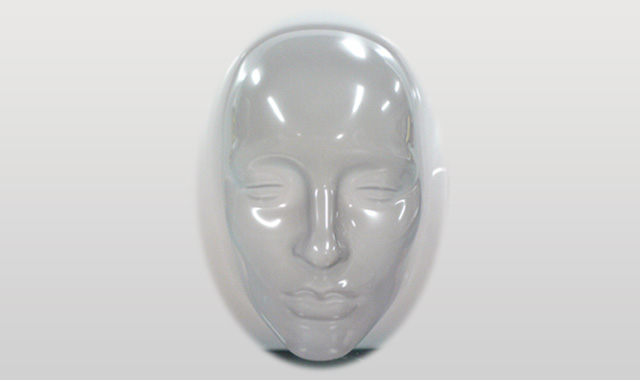

  • Face Type
