Products

CLAREX

These are the basic CLAREX product categories. Please refer to each product category for the detail, and feel free to ask for customization or new development.

UV Transmission Filter

CLAREX UV Transmission Filter transmits ultra-violet rays at 260nm.

Features

Transmit Ultra-violet ray. (approx. 80% at 300nm)
Excellent Optical Characteristics and weather resistance.
May be combined with Hard Coat and/or other Optical Coatings.
May be combined with Flat (glossy) surface and/or Non-Glare surface sheet.

Application

Optical Disc substrates / X-ray & UV-ray photoresist / Sterilization Filter / etc.

Thickness

0.2mm〜5.0mm

Basic Line-Ups

S-0
S-0-L
For other optical characteristics, please ask for customization.

Optical Data

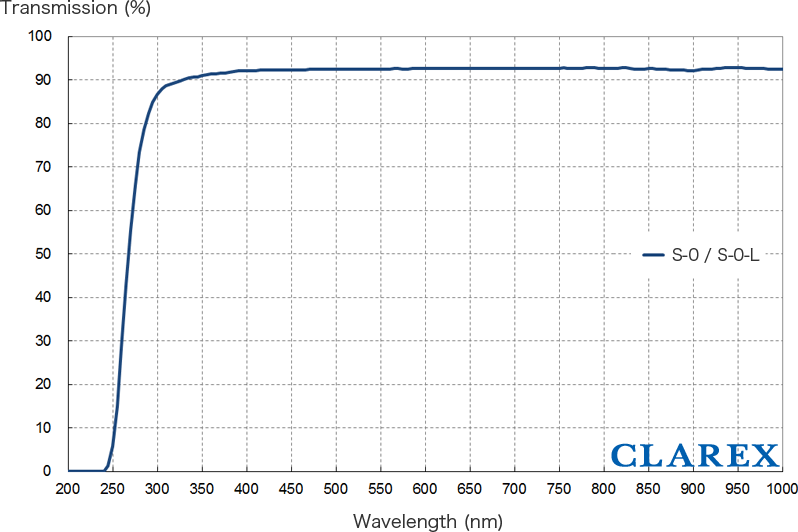

UV Transmission Filter S-0、S-0-L

UV Transmission Filter

Weather Resistance Data

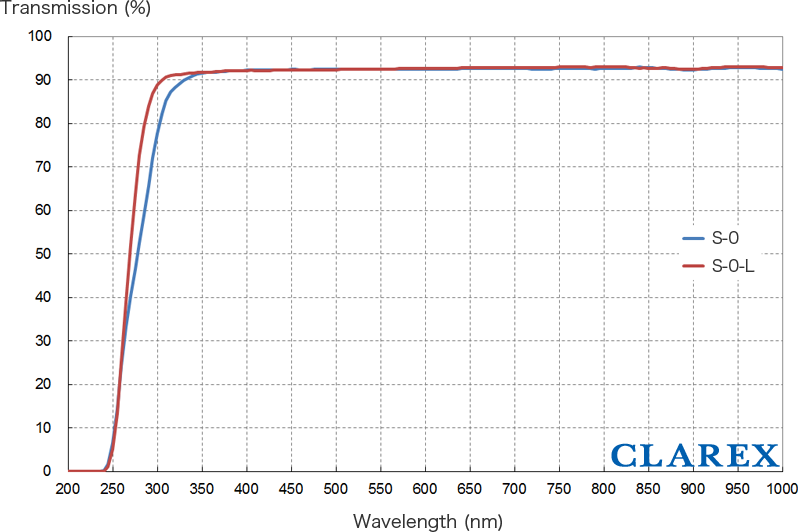

UV Transmission Filter S-0、S-0-L after 500hrs of UV exposure

UV Transmission Filter S-0、S-0-L after 500hrs of UV exposure

※ Value provided cannot be guaranteed in your application due to circumstances beyond our control.

Optical Data Download


UV Transmission Filter (PDF format)

※ For browsing method of PDF file, please click here.
