G-230601
Anti-Reflection at VIS + NIR-Reflection
Anti-Reflection gives better transmission at VIS range NIR-Reflection blocks NIR to protect display.
IR block + AR
Designed for increased transmission in the visible (VIS) range while reflecting/reducing transmission in the Near Infrared (NIR) range.

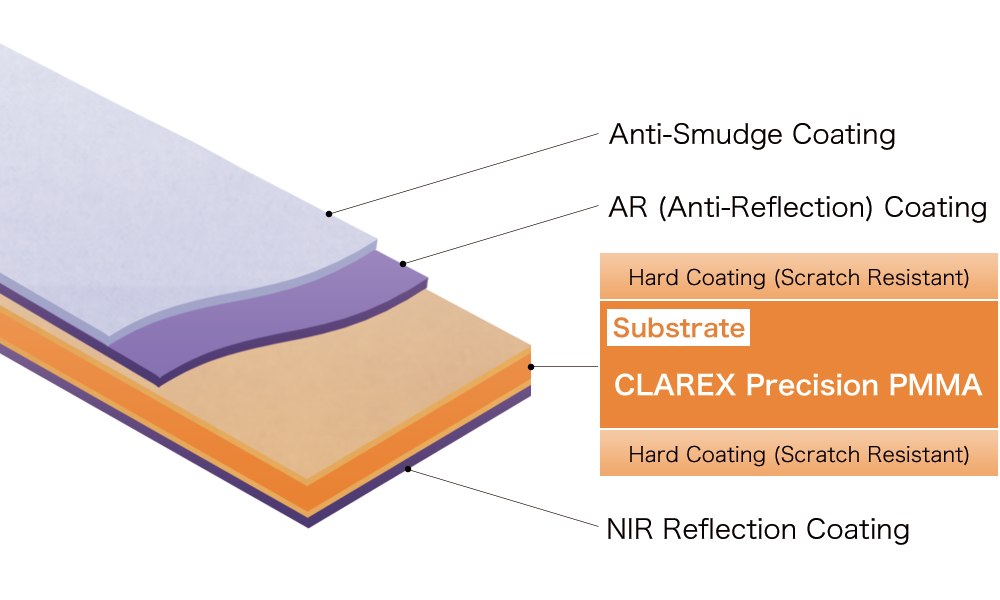

Configuration
![](images/G230601_cons.png)
Example of Use
Glare-Trap / Dust Cover for HUD
![G230601 example01](images/G230601_img01.jpg)

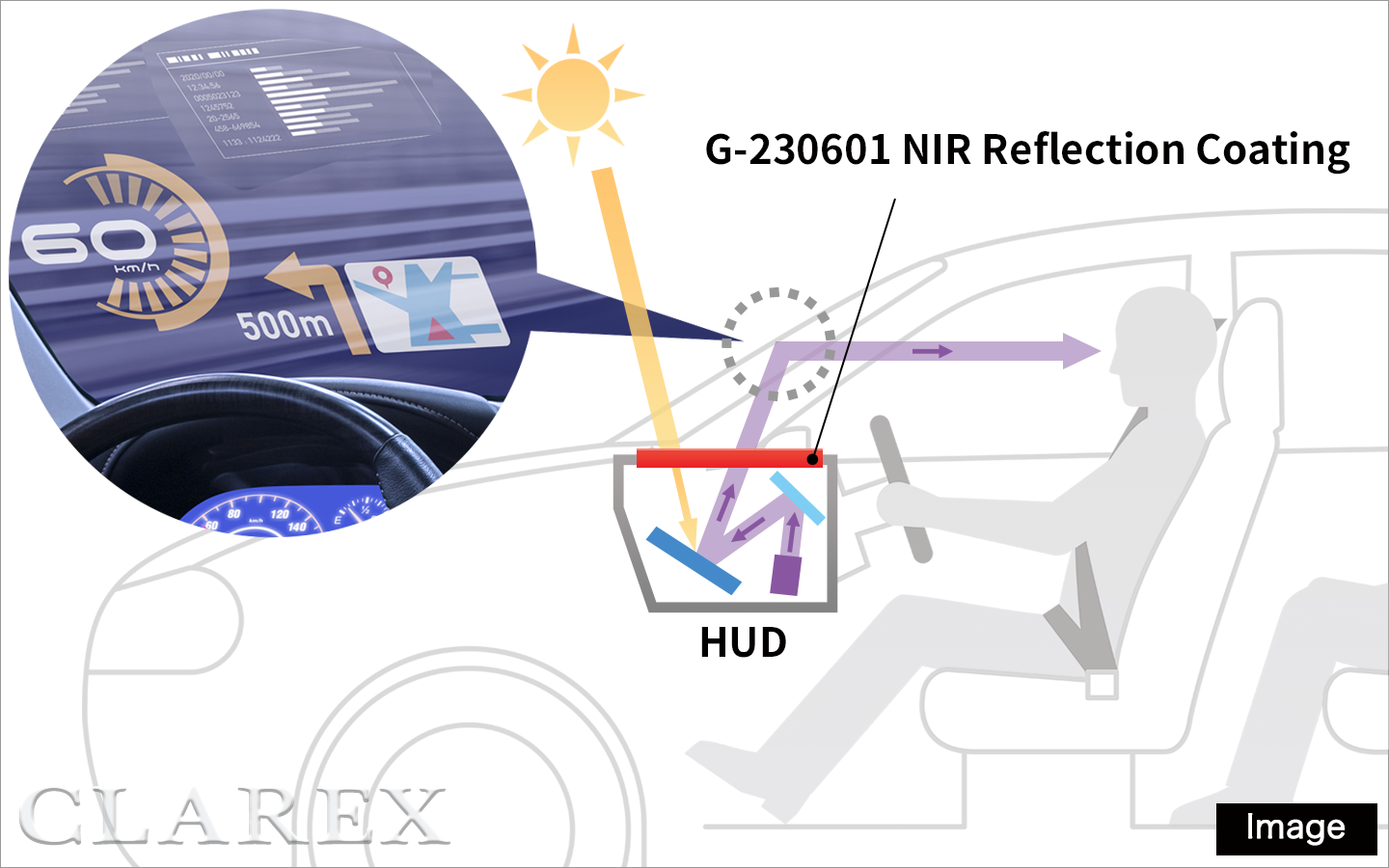

Glare-Trap / Dust Cover for HUD (Exploded View)
![G230601 example02](images/G230601_img02.png)
Display cover for outdoor monitor, etc.

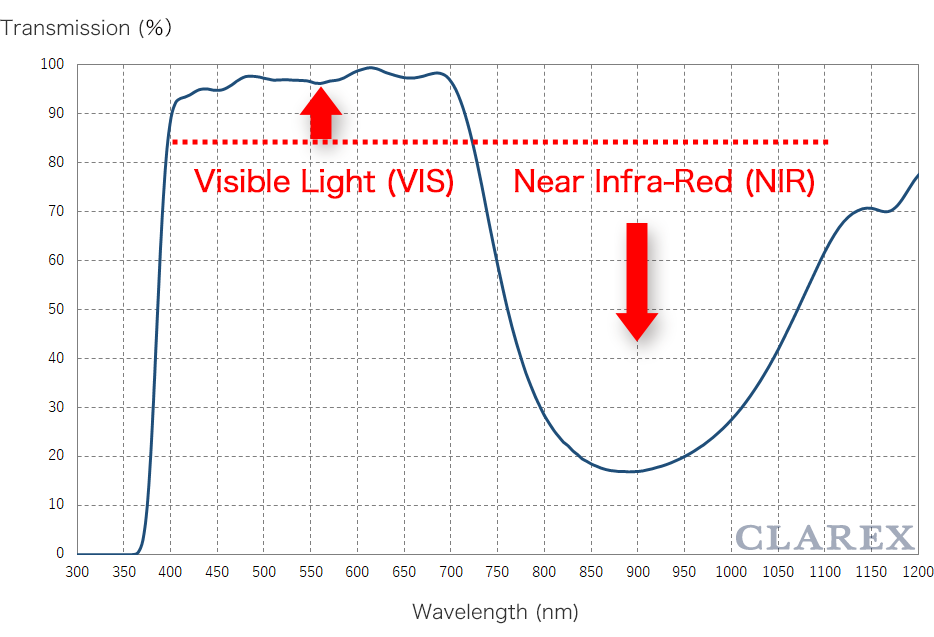

Optical Data
G-230601 / RH20 001
![](images/G230601_graph.png)
※ The optical transmission curve in the figure is the measured value of 1.0mm thick sample and is not for guarantee.
