CLAREX

G-230602-a
High-Durability AR

G-230602-a

Improved Coating Durability

The highly durable Anti-Reflection coating with improved sea-water resistance and sunshine resistance compared to conventional AR.

Display cover for the monitor used at waterside
G230602a example01
Protection cover for outdoor monitors or camera
G230602a example02

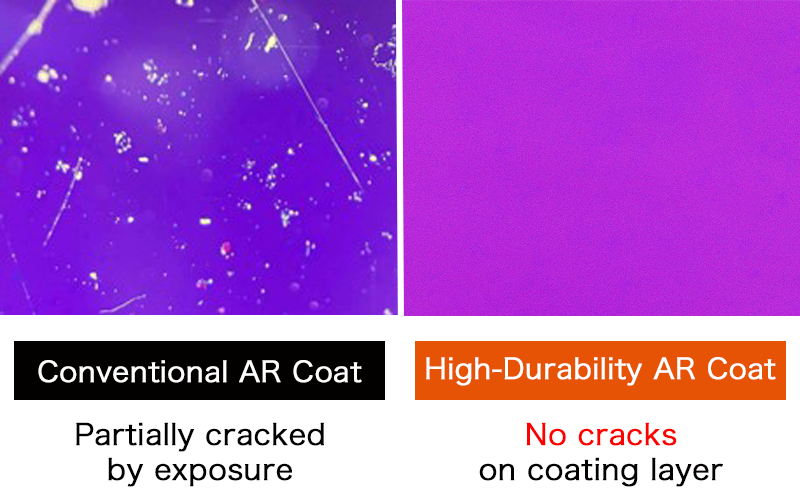

Outdoor Exposure Test
Expose outdoor for 180 days
G-230602a Outdoor Exposure Test

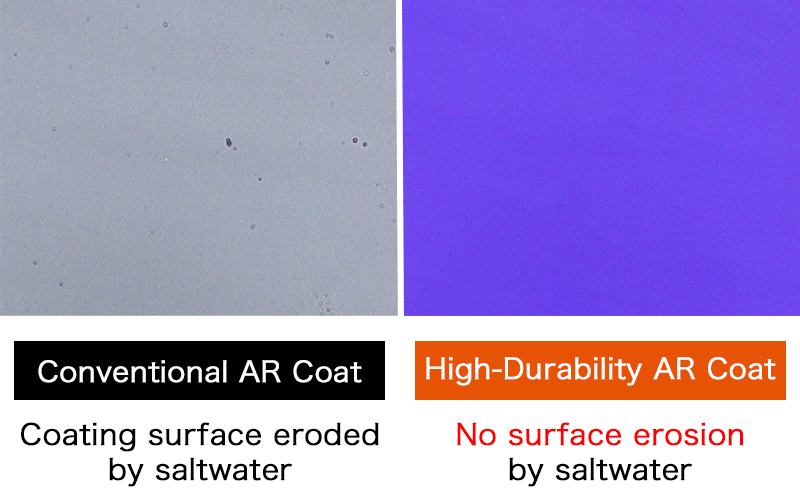

Saltwater Spray Test
Warm up 5wt% NaCL solution to 35℃ and spray
G-230602a Saltwater Spray Test
　 　
Check Items Test Details / Standard Results

Abrasion Resistance

 #0000 Steel Wool / 1.5kg load / 5 cycles below 15 scratches

Pencil Hardness

 JIS K5600-5-4 (750g load) 4H

Contact Angle

 θ/2 method 105°or over

Coating Adhesion

 Cross-Cut Test (×3) No Coating Delamination

Heat Resistance

 80℃, 1000h No Coating Delamination

Humidity Resistance

 60℃, 95％, 1000h No Coating Delamination

Saltwater Resistance

 JIS Z2371 (saltwater spray test / 28days) No Coating Delamination

Lightfastness

 Super xenon BP (63℃ / 500h) No Coating Delamination

Outdoor Exposure

 JIS Z2381 (under glass exposure test / 180days) No Coating Delamination

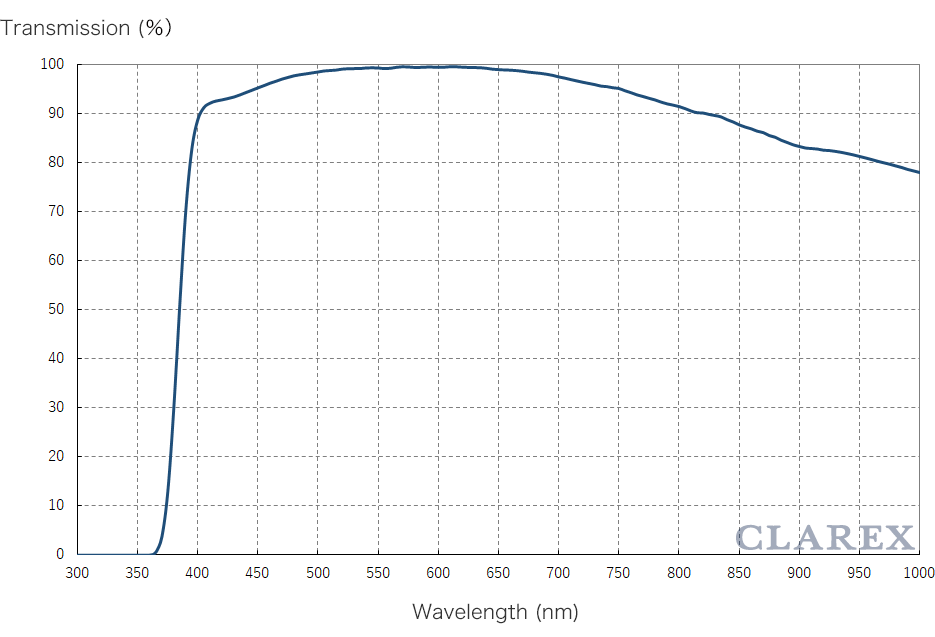

G-230602a / RH20 001 High-Durability AR

※ The optical transmission curve in the figure is the measured value of 1.0mm thick sample and is not for guarantee.
