G-230602-b
Improved Coating Durability
The highly durable Anti-Reflection coating with improved Sunshine Resistance and Abrasion Resistance compared to conventional AR Coating.
Compatible with DIN standard
European automotive specification / TL-226 (※ Only items related to the adhesion of the coating layer.)
Configuration
![](images/G230602_cons.png)
Example of Use

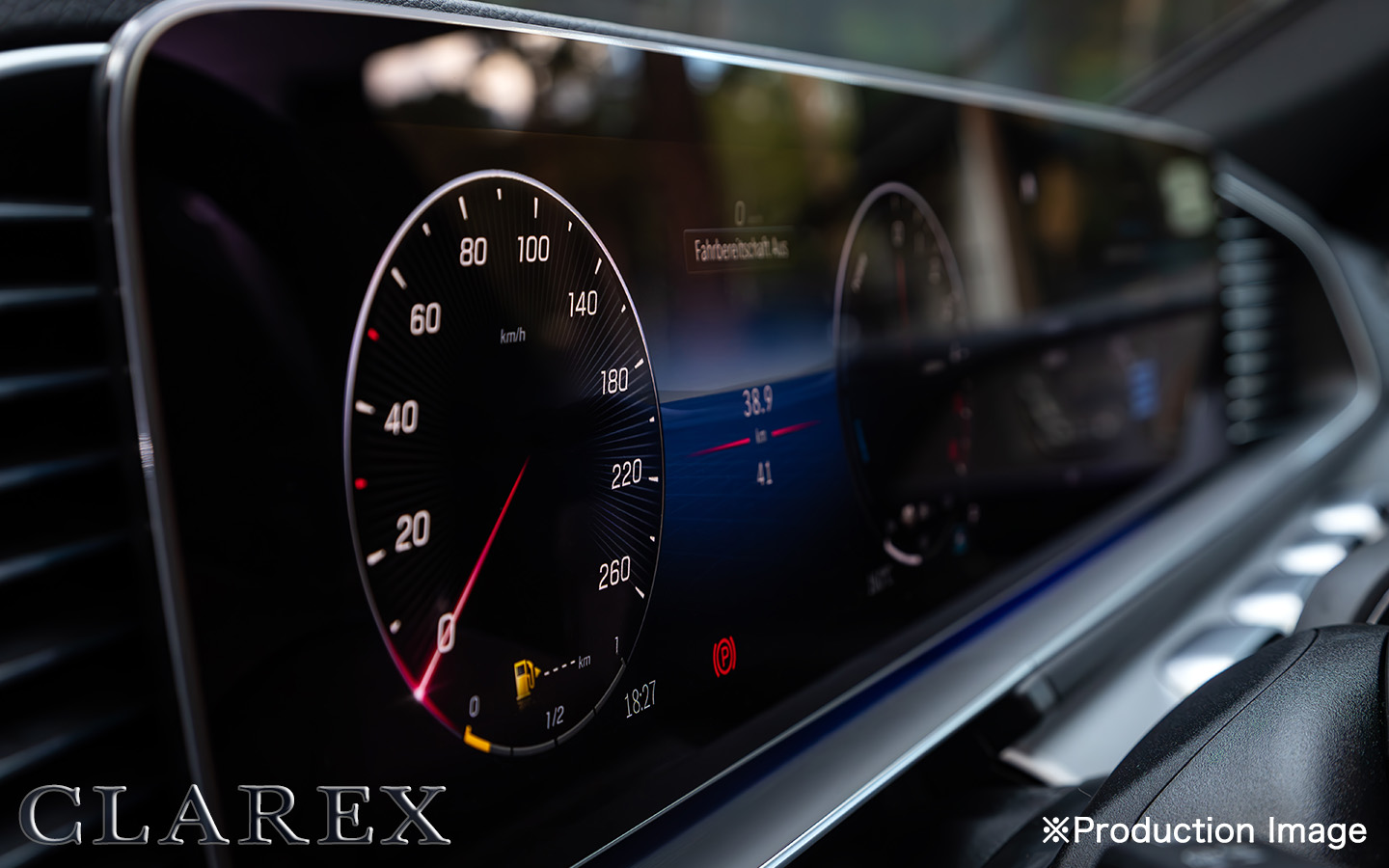

Instrument cover material for automotive interior
![G230602b example01](images/G230602b_img01.jpg)

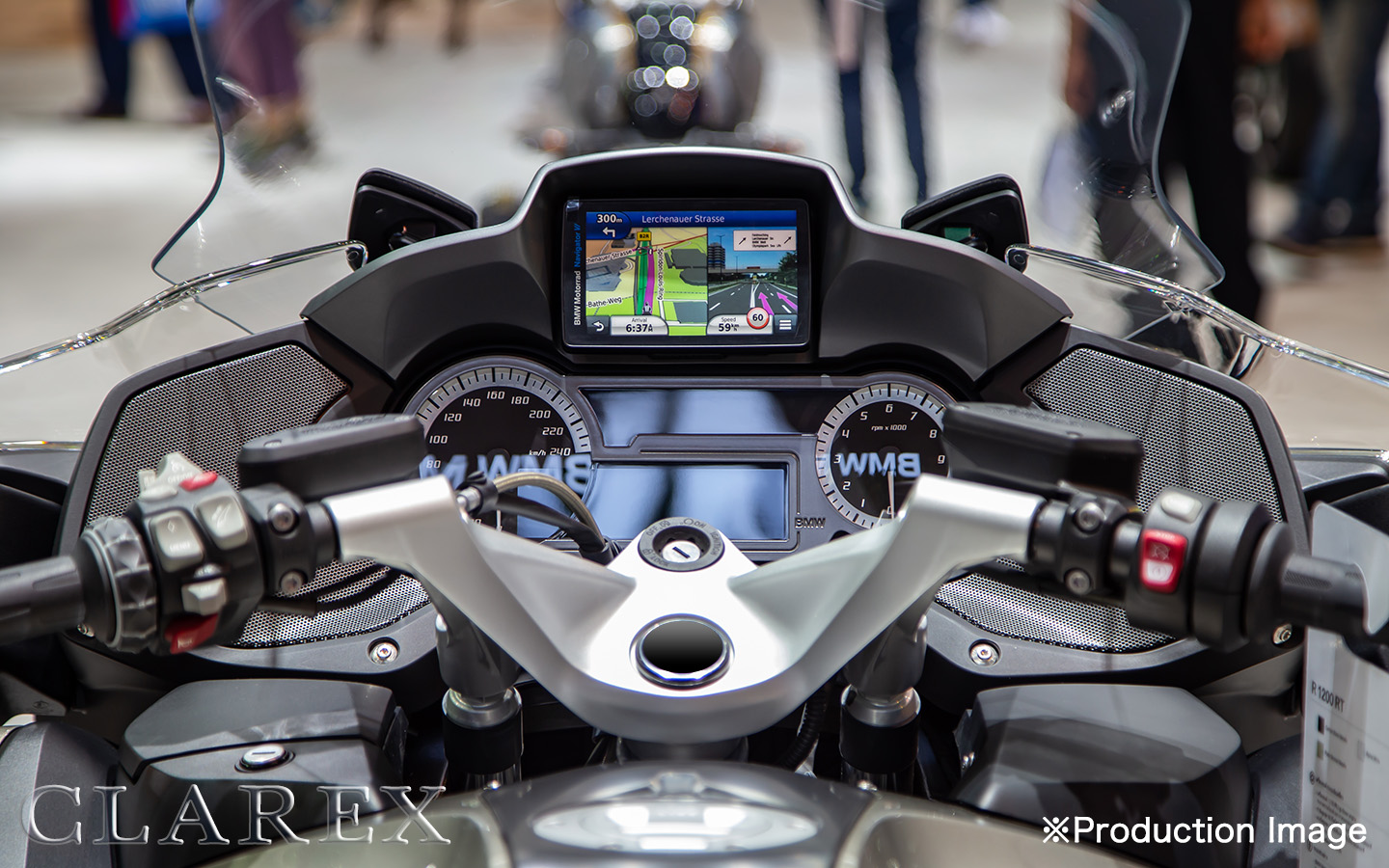

Motorcycle instrument panel covers
![G230602b example02](images/G230602b_img02.jpg)
Features
Property | Standard ※1 | Detail | Check Items | Result ※2 |
---|---|---|---|---|
Coating Layer Adhesion | DIN EN ISO 2409 | Cross-Cut Test | Coating Adhesion | Pass |
Scratch Resistance | TL-226 (PV3952) | Erichsen Hardness Test | Surface Hardness | Pass |
Abrasion Resistance | DIN EN 20105-A03 TL-226 / PV3906 |
Rubbing by dry/wet cloth | Fastness to Rubbing | Pass |
Chemical Resistance | TL-226 | 6 types of cleaning agents and synthetic sweat (Acidic/Alkaline) | Visible Change | Pass |
Cream Resistance | TL-226 / PV3964 | Hand Cream / Sunscreen | Coating Adhesion | Pass |
Scratch Resistant | Pass | |||
Humidity / Heat Resistance | TL-226 | - | Coating Adhesion | Pass |
Scratch Resistant | Pass | |||
Sunlight Simulation | DIN 75220-D-IN1-T | UV Exposure Test | Coating Adhesion | Pass |
Scratch Resistant | Pass |
※1 Only items related to the adhesion of the coating layer.
※2 Results of the water-repellent coating surface only.
Optical Data

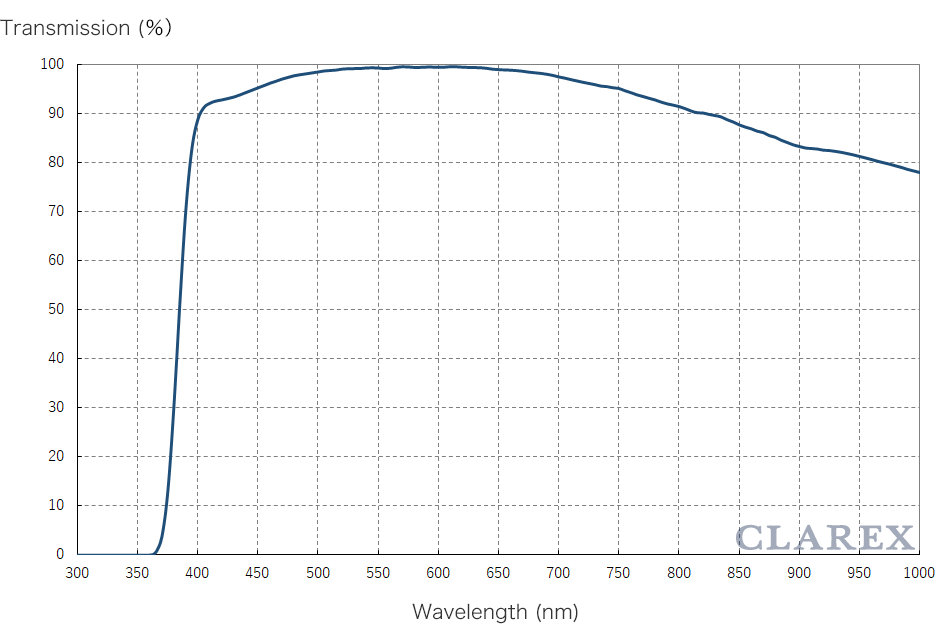

G-230602b / RH20 001 High-Durability AR
![](images/G230602b_01_graph.png)

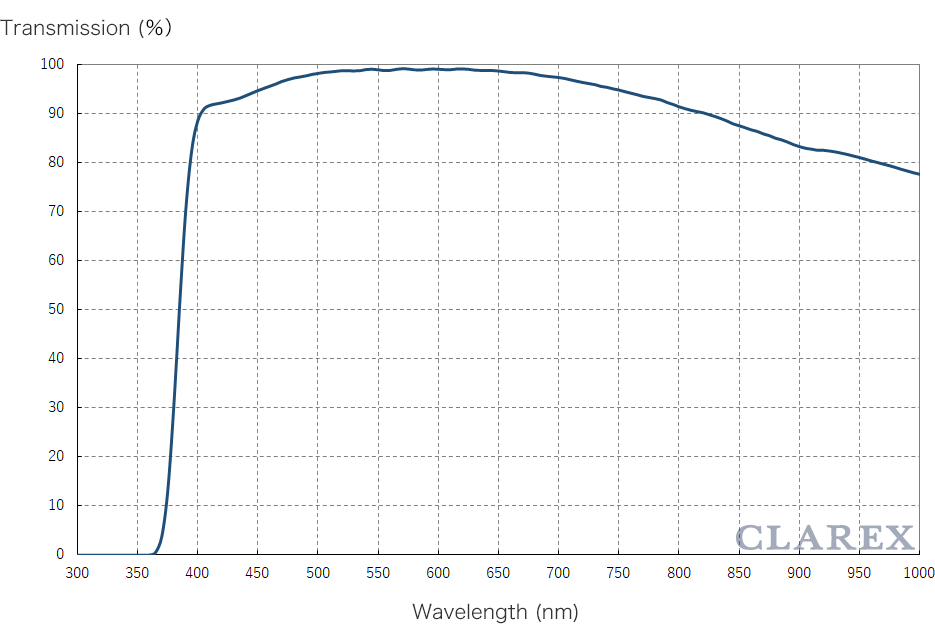

G-230602b / RH20 SM50 001 High-Durability AR
![](images/G230602b_02_graph.png)

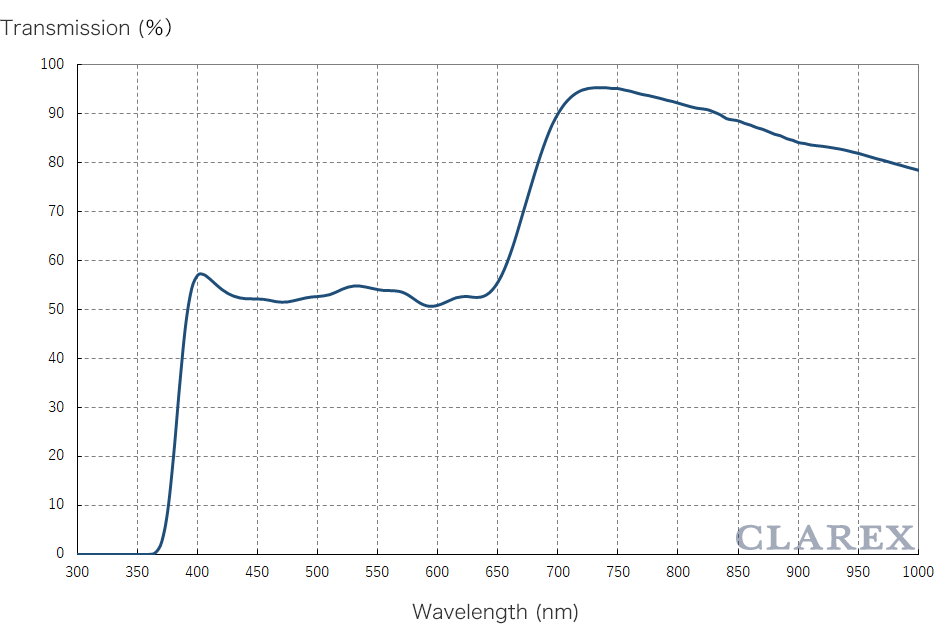

G-230602b / RH20 SM50 LB-50 High-Durability AR
![](images/G230602b_03_graph.png)
※ The optical transmission curve in the figure is the measured value of 1.0mm thick sample and is not for guarantee.
