G-230603
Combination of Partial-Reflecting Mirror Coating and AR Coating
Required reflection/transmission can be customized depends on the specifications.

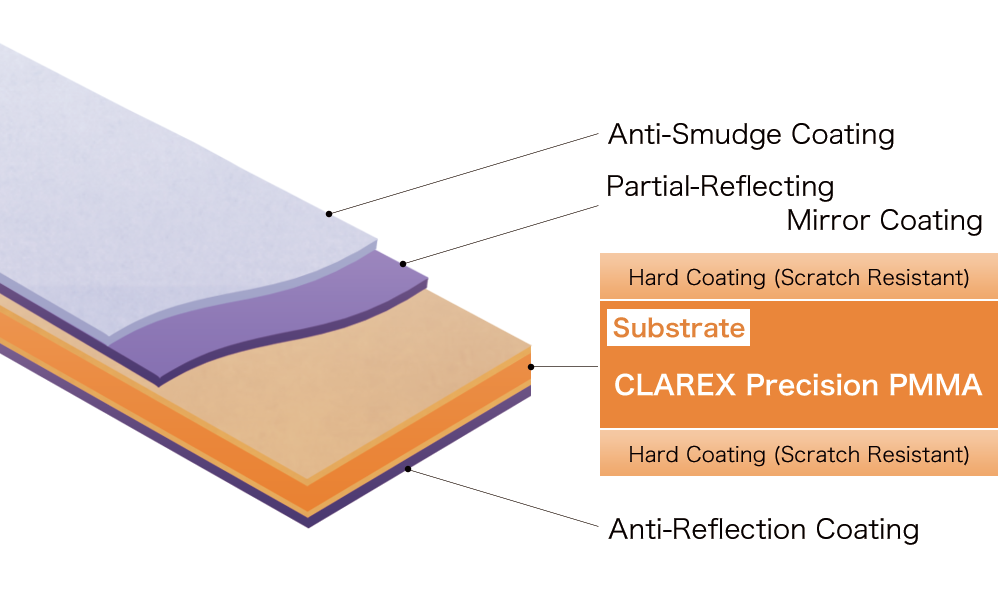

Configuration
![](images/G230603_cons.png)
Example of Use
Front Cover for HMD (Head Mount Display)
![G230603 example01](images/G230603_img01.jpg)

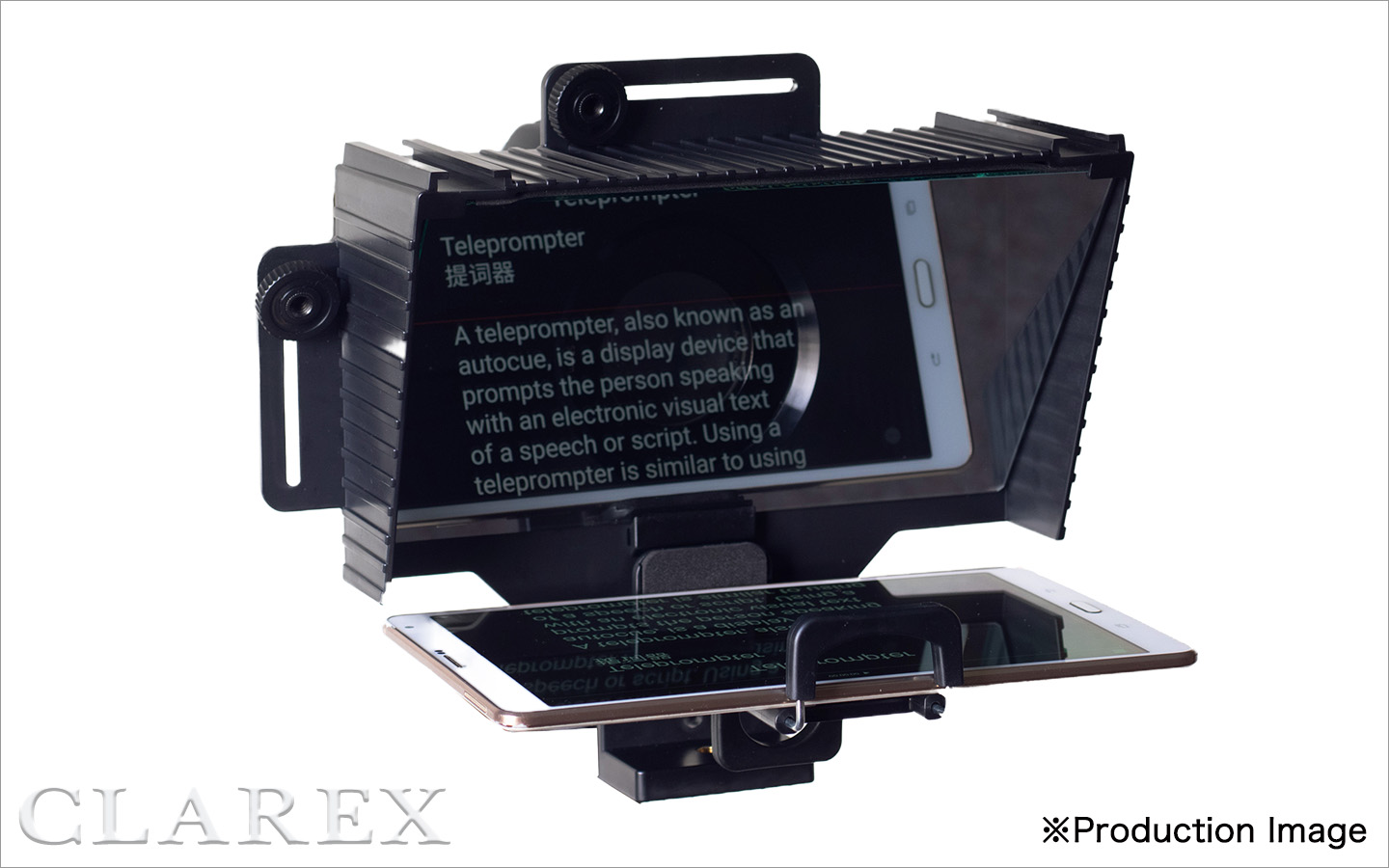

Combiner for prompter
![G230603 example02](images/G230603_img02.jpg)
Display materials for automotive interior

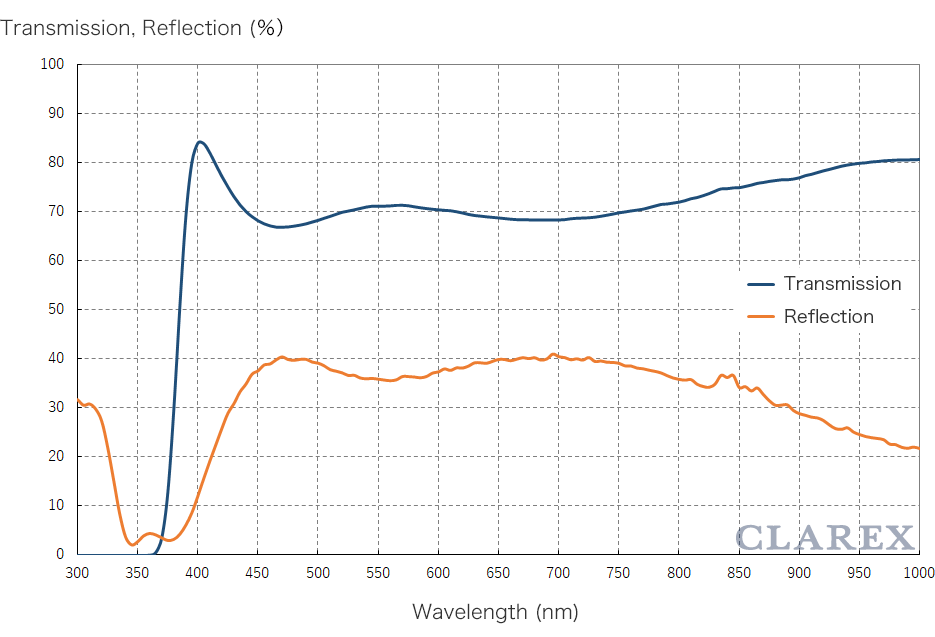

Optical Data
G-230603 RH20 001 / Partial-Reflecting Mirror + AR
![](images/G230603_graph.png)
※ The optical transmission curve in the figure is the measured value of 1.0mm thick sample and is not for guarantee.
