G-230604
Wider Range of Anti-Reflection (VIS-to-NIR)
Achieves low reflection and high transmittance from visible light (VIS) to near infrared light (NIR)

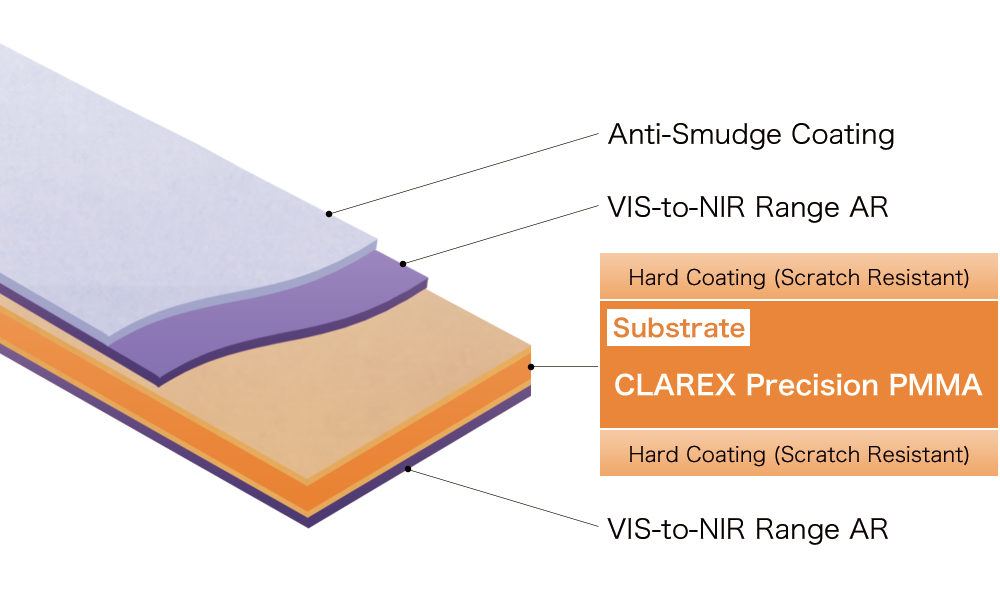

Configuration
![](images/G230604_cons.png)
Example of Use

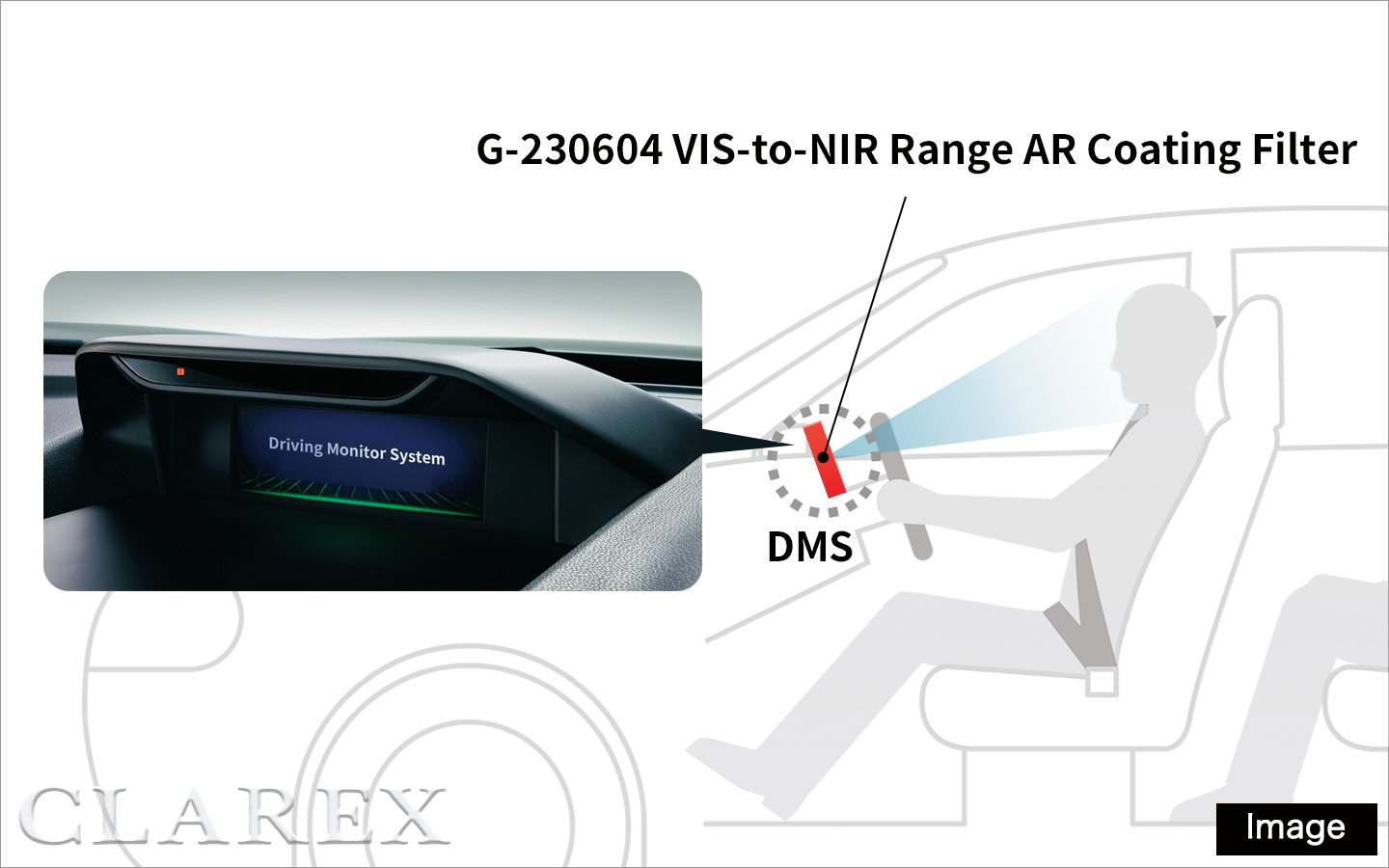

Front cover for DMS integrated monitor
![G230604 example01](images/G230604_img02.png)

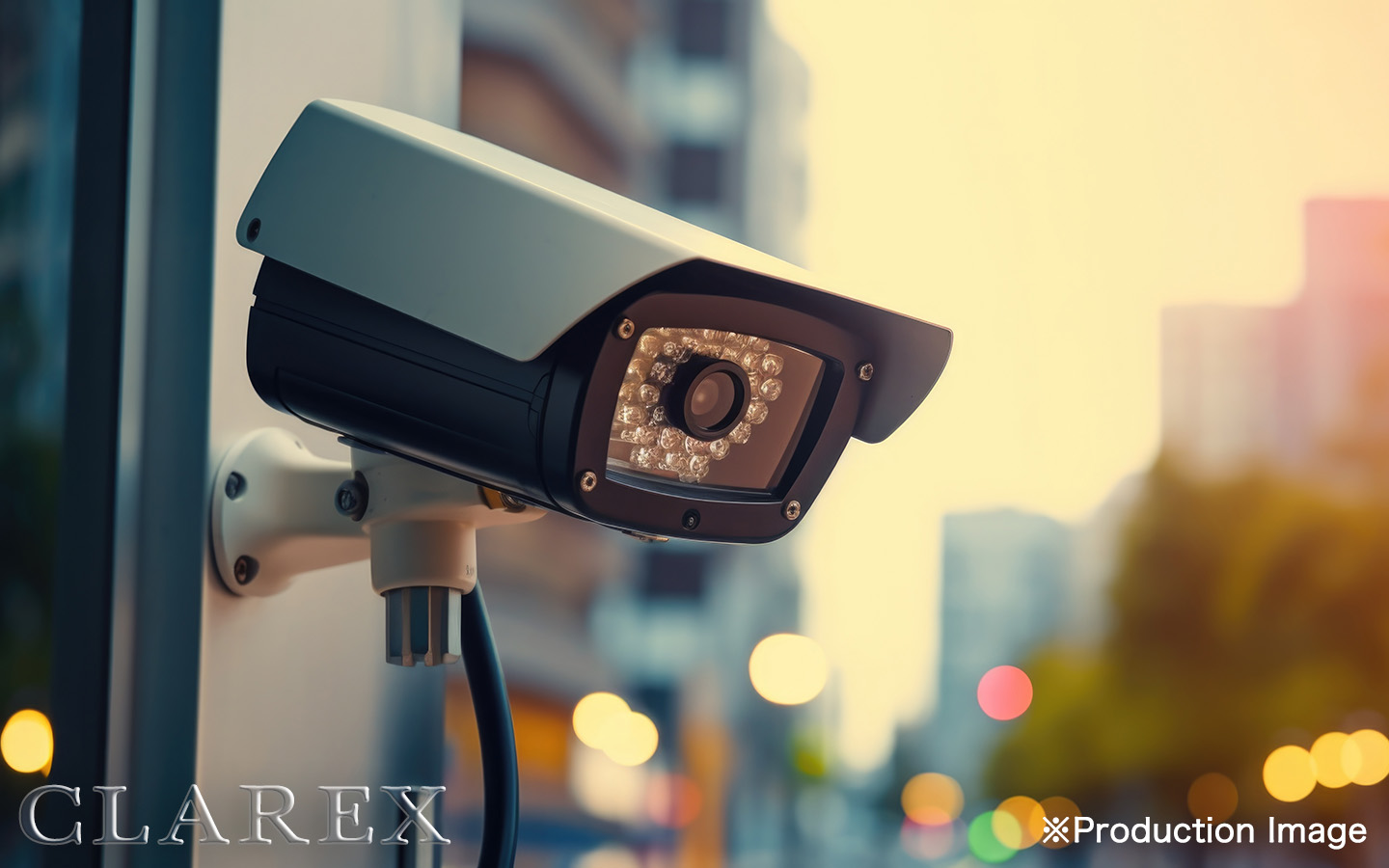

Front cover for security camera
![G230604 example02](images/G230604_img01.jpg)
Front cover for Human Detection Sensor, etc.

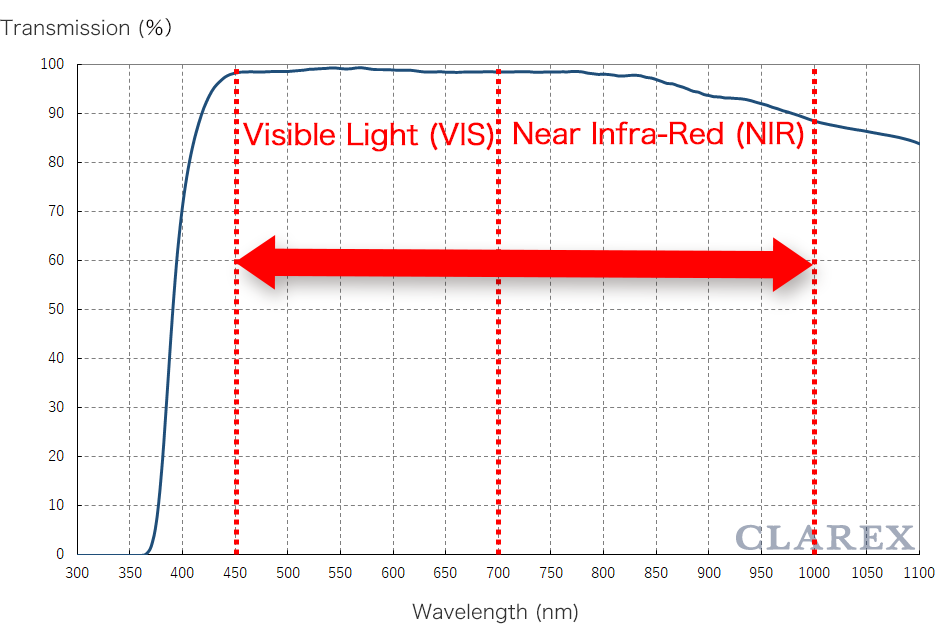

Optical Data
G-230604 RH20 001 / VIS-to-NIR Range AR
![](images/G230604_graph.png)
※ The optical transmission curve in the figure is the measured value of 1.0mm thick sample and is not for guarantee.
