G-230605
Higher Transmission (Lower Reflection) at 1300nm and 1550nm
Designed for superior image quality in Short Wave Infrared (SWIR) range.

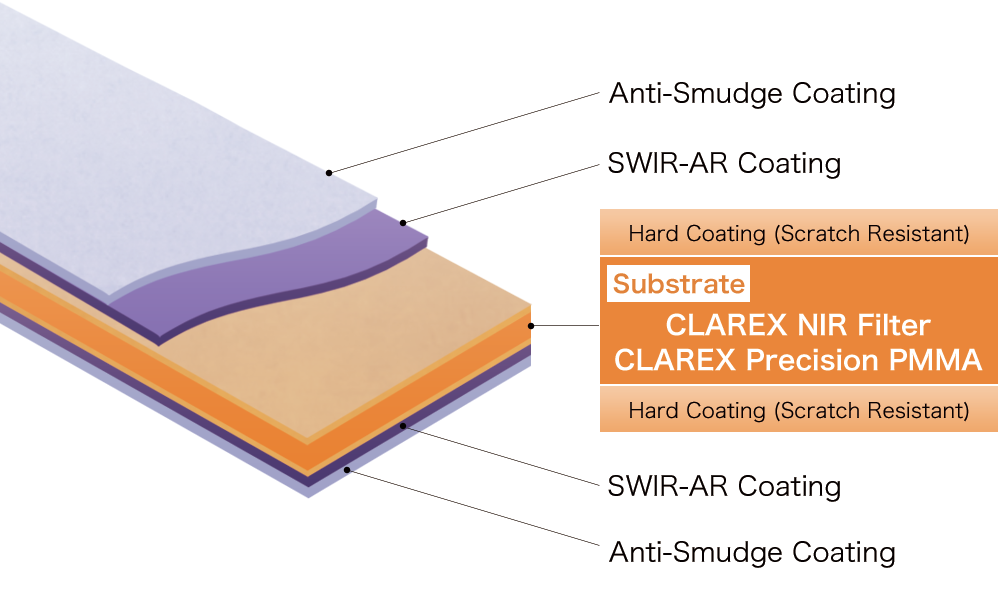

Configuration
![](images/G230605_cons.png)

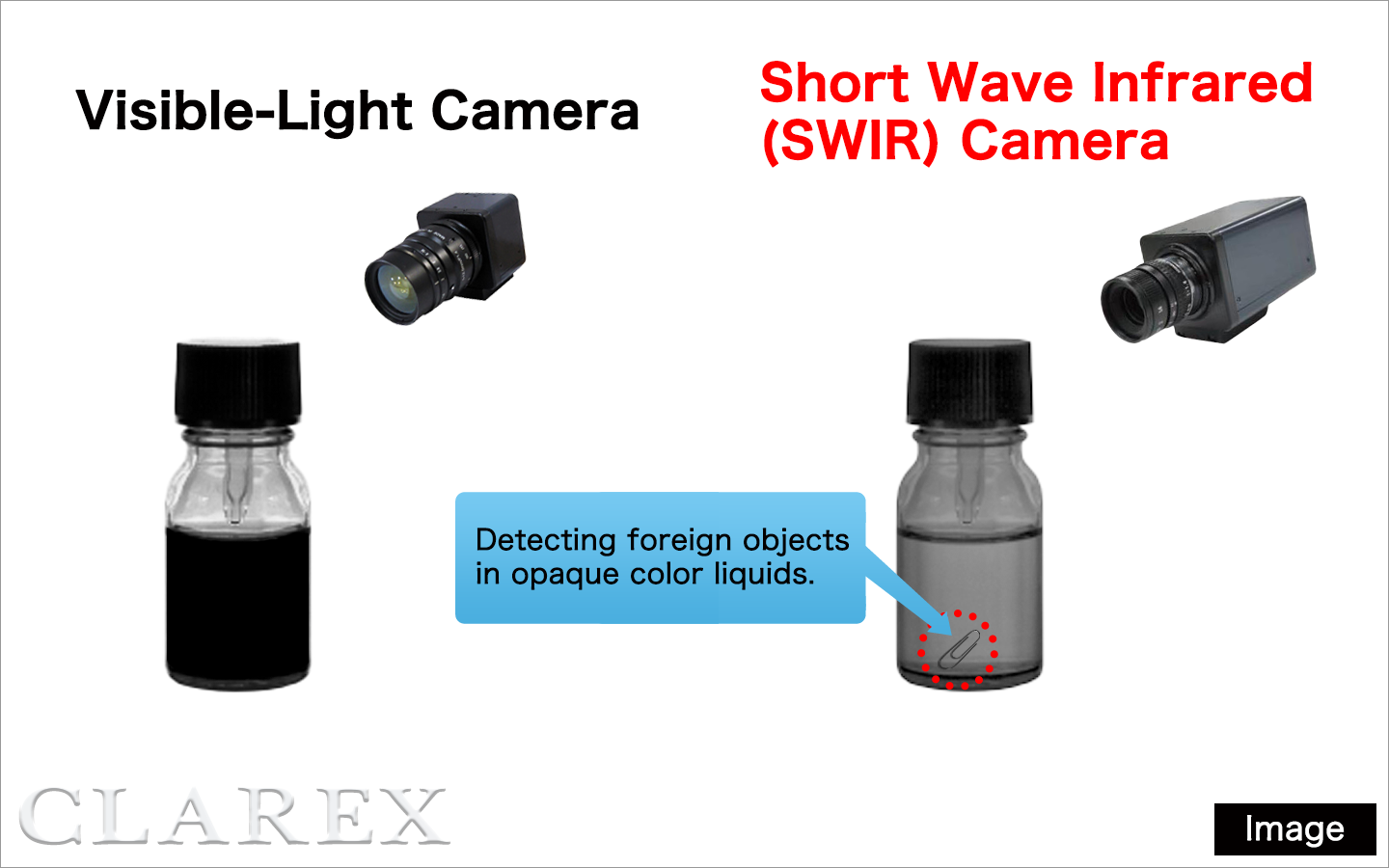

Example of Use
Short Wave Infrared (SWIR) Imaging Camera
![G230605 example01](images/G230605_img01.png)
Short Wave Infrared (SWIR) sensor module, etc.

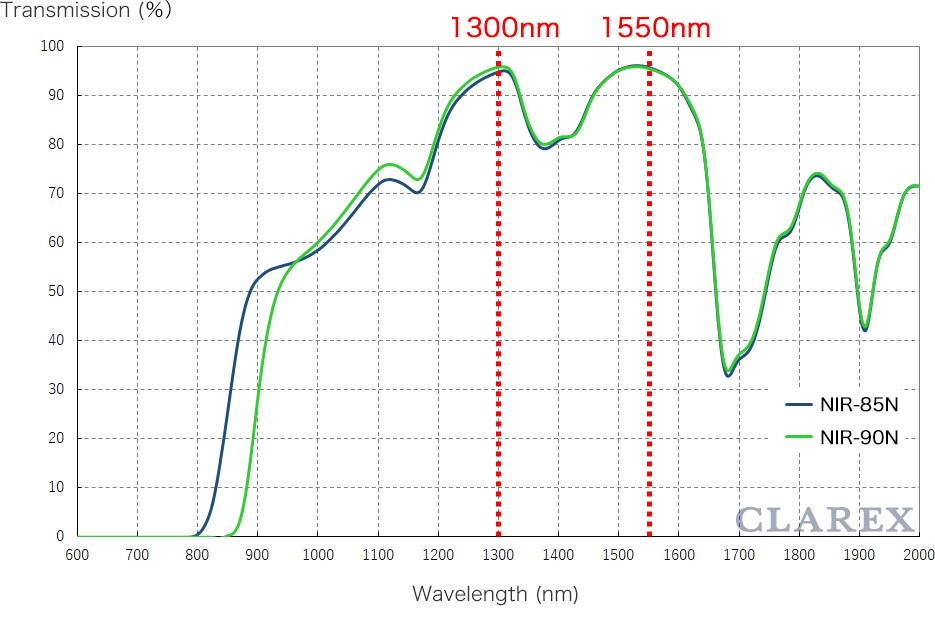

Optical Data
G-230605 / Short Wave Infrared (SWIR) AR
![](images/G230605_graph.png)
※ The optical transmission curve in the figure is the measured value of 1.0mm thick sample and is not for guarantee.
