Prototype G-230601

AR coating + NIR blocking coating

Anti-Reflection at VIS + NIR-Reflection

Anti-Reflection gives better transmission at VIS range NIR-Reflection blocks NIR to protect display.

IR block + AR

Designed for increased transmission in the visible (VIS) range while reflecting/reducing transmission in the Near Infrared (NIR) range.

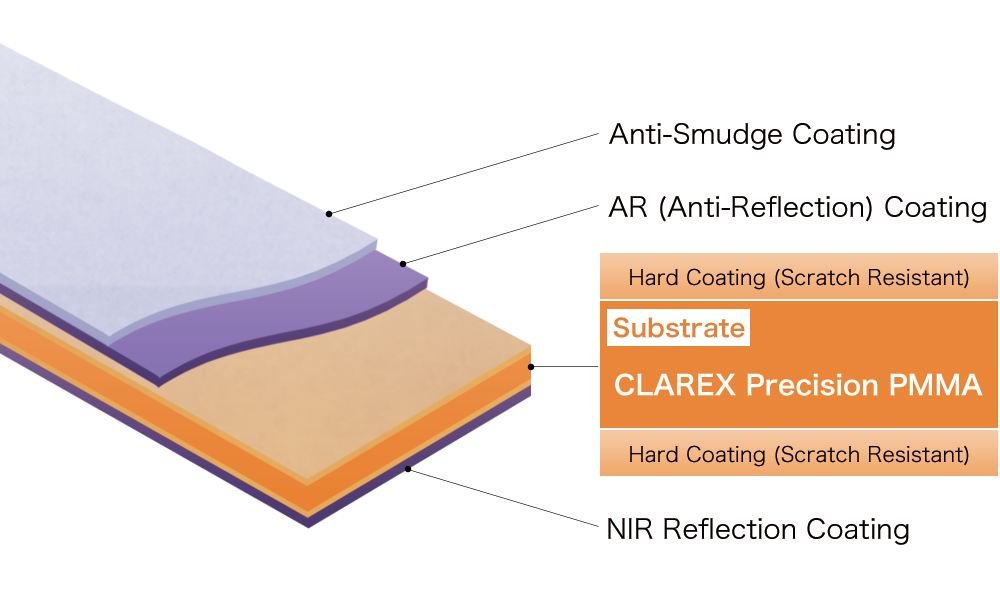

Configuration

Example of Use

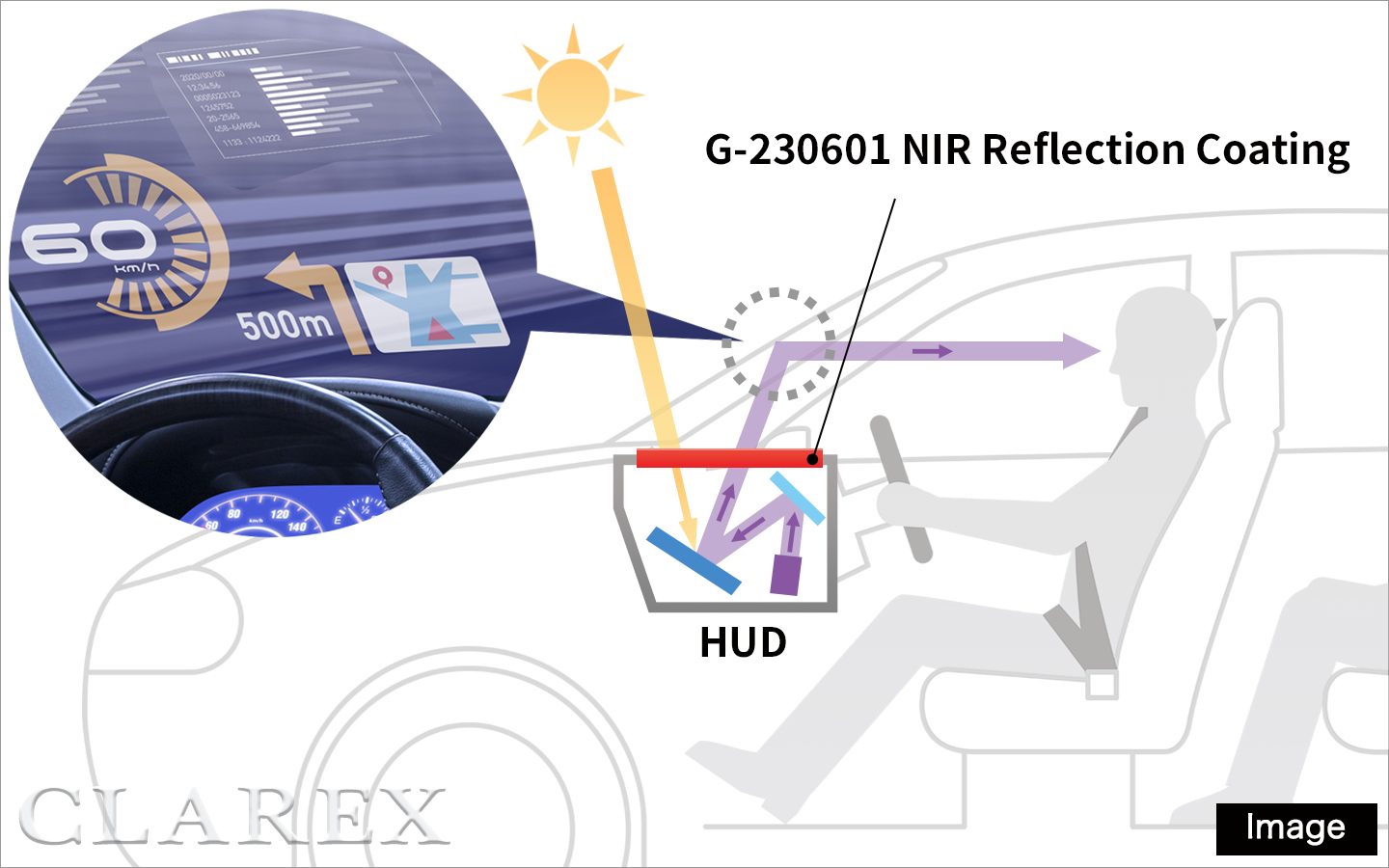

Glare-Trap / Dust Cover for HUD

Glare-Trap / Dust Cover for HUD (Exploded View)

Display cover for outdoor monitor, etc.

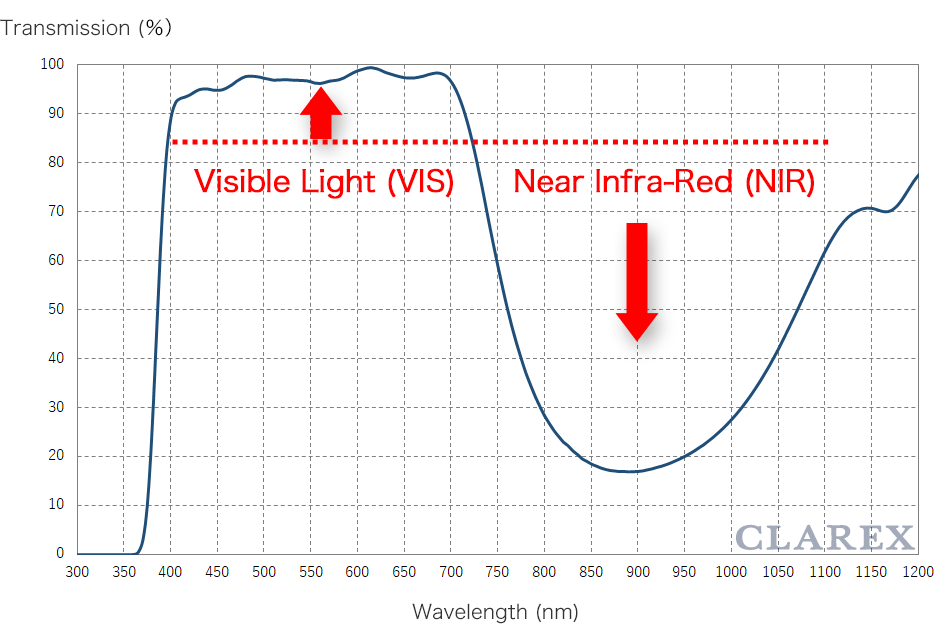

Optical Data

G-230601 / RH20 001

※ The optical transmission curve in the figure is the measured value of 1.0mm thick sample and is not for guarantee.
