High-Durability AR
Improved Coating Durability
The highly durable Anti-Reflection coating with improved Sunshine Resistance and Abrasion Resistance compared to conventional AR Coating.
Compatible with DIN standard
European automotive specification / TL-226 (※ Only items related to the adhesion of the coating layer.)
Configuration
Example of Use

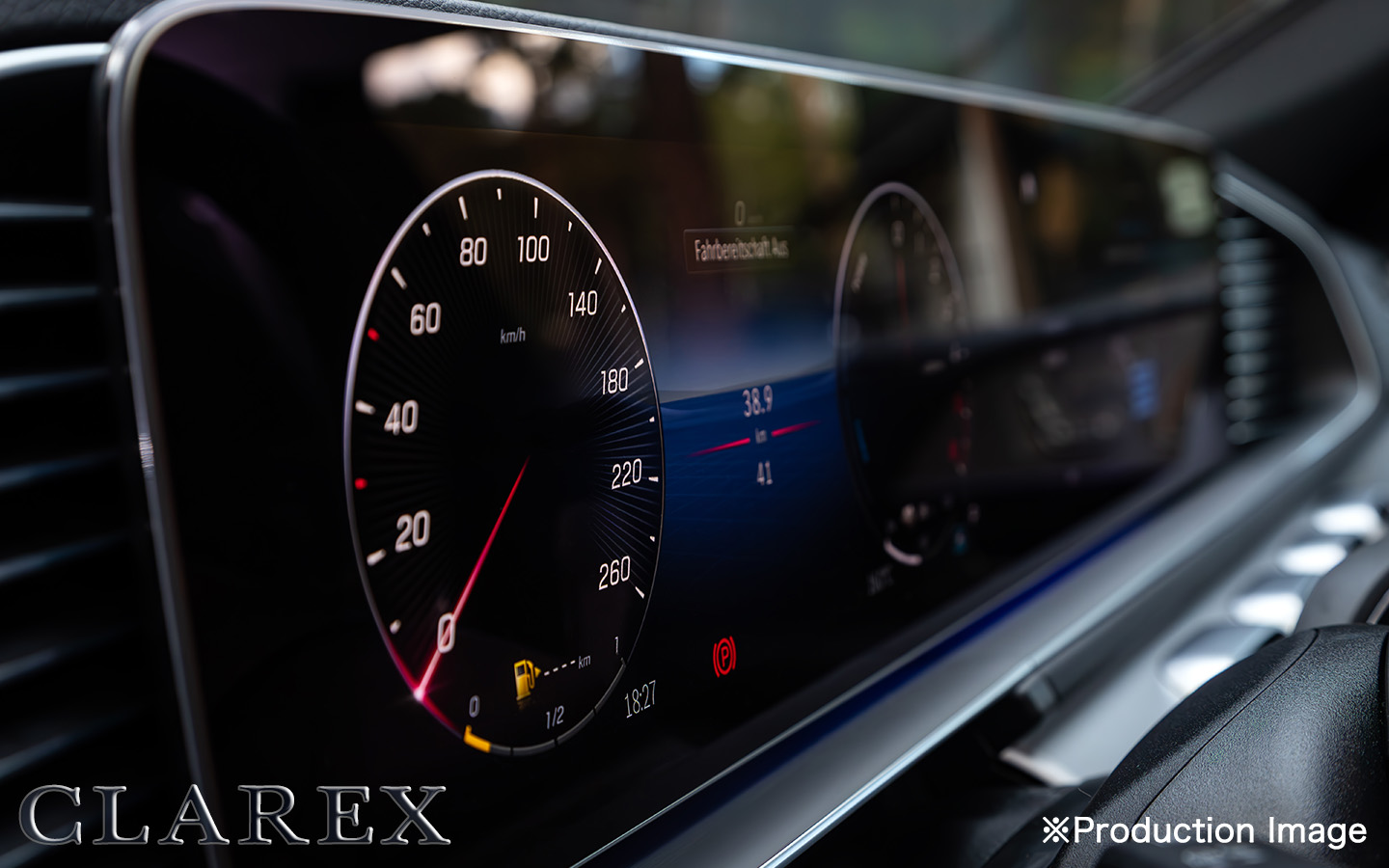

Instrument cover material for automotive interior

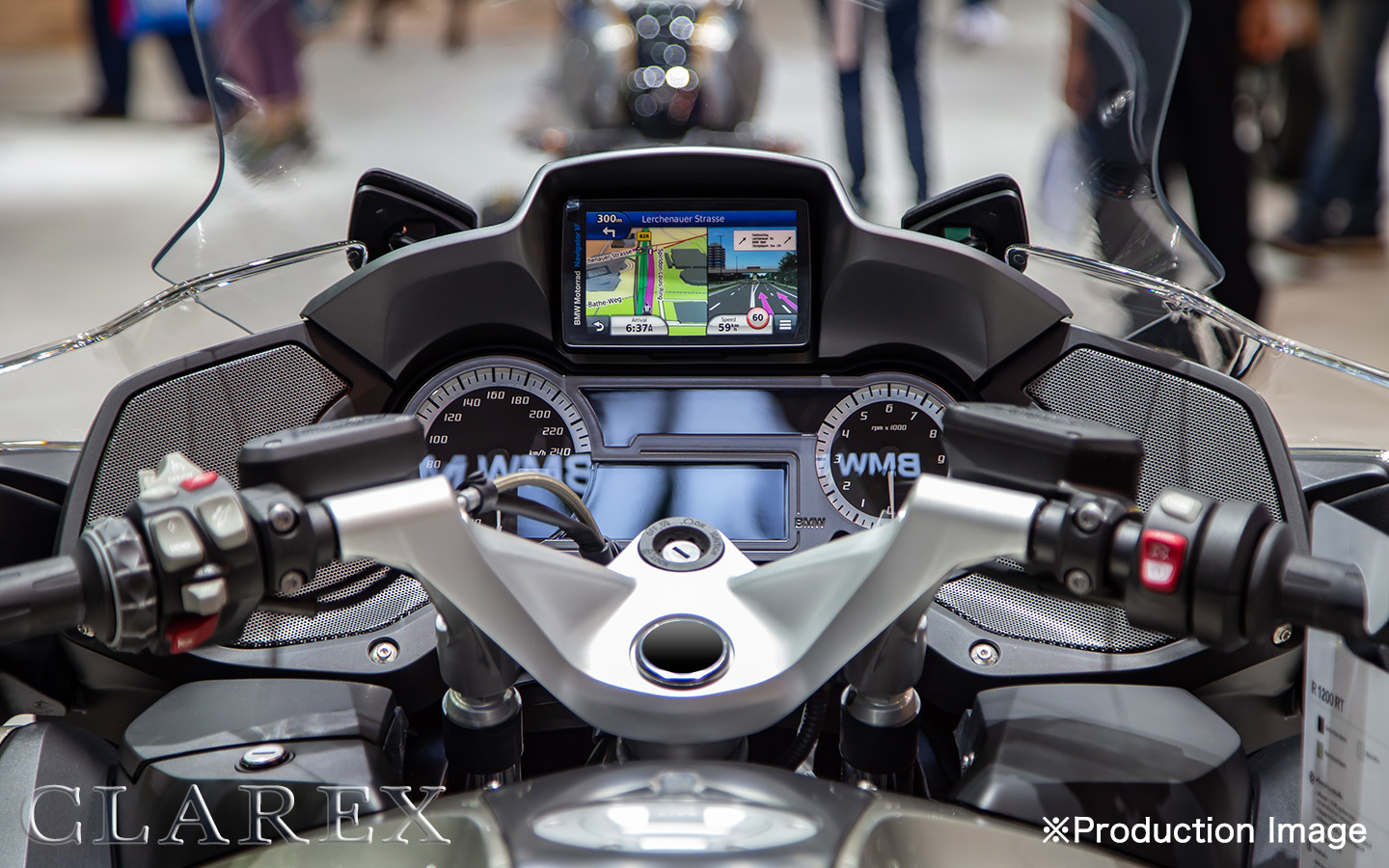

Motorcycle instrument panel covers
Features
| Property | Standard ※1 | Detail | Check Items | Result ※2 |
|---|---|---|---|---|
| Coating Layer Adhesion | DIN EN ISO 2409 | Cross-Cut Test | Coating Adhesion | Pass |
| Scratch Resistance | TL-226 (PV3952) | Erichsen Hardness Test | Surface Hardness | Pass |
| Abrasion Resistance | DIN EN 20105-A03 TL-226 / PV3906 | Rubbing by dry/wet cloth | Fastness to Rubbing | Pass |
| Chemical Resistance | TL-226 | 6 types of cleaning agents and synthetic sweat (Acidic/Alkaline) | Visible Change | Pass |
| Cream Resistance | TL-226 / PV3964 | Hand Cream Sunscreen | Coating Adhesion | Pass |
| Scratch Resistant | Pass | |||
| Humidity / Heat Resistance | TL-226 | Coating Adhesion | Pass | |
| Scratch Resistant | Pass | |||
| Sunlight Simulation | DIN 75220-D-IN1-T | UV Exposure Test | Coating Adhesion | Pass |
| Scratch Resistant | Pass |
- 1 Only items related to the adhesion of the coating layer.
- 2 Results of the water-repellent coating surface only.
Optical Data

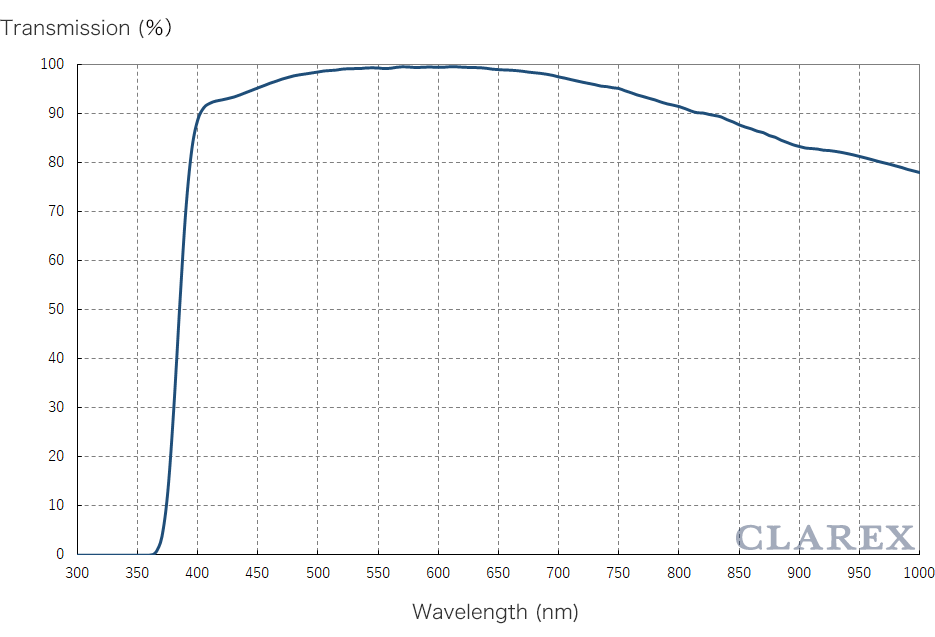

G-230602b / RH20 001 High-Durability AR

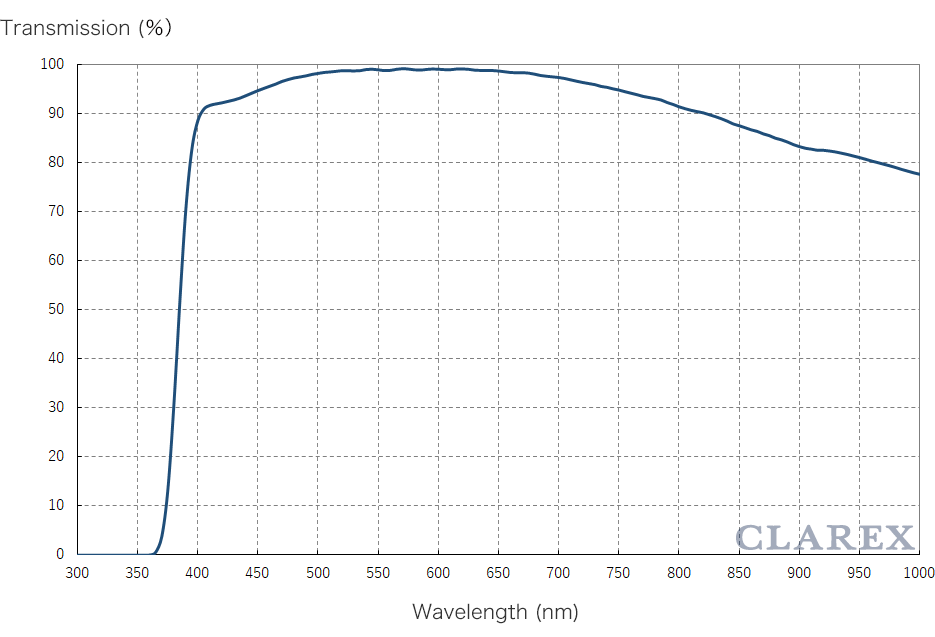

G-230602b / RH20 SM50 001 High-Durability AR

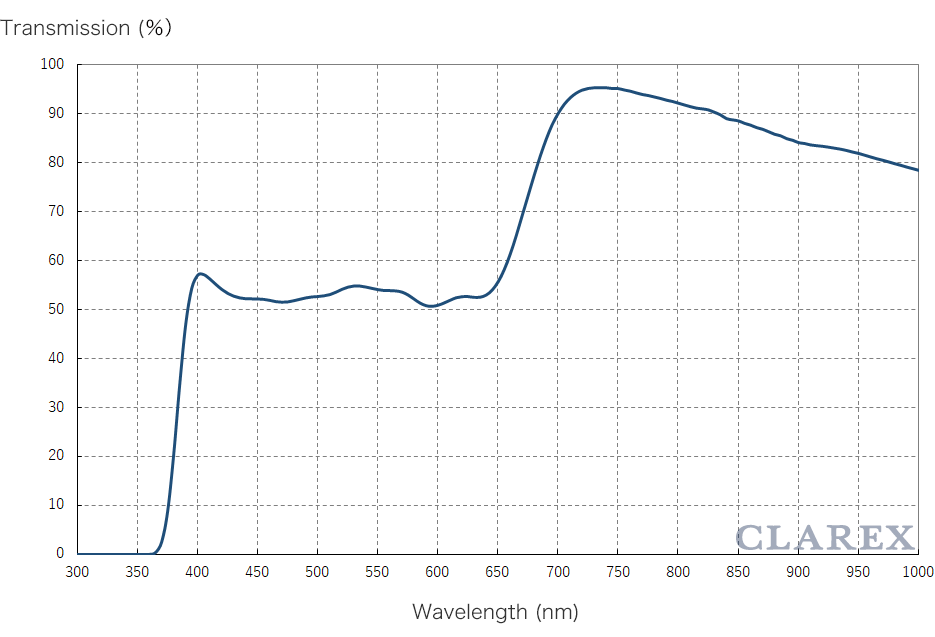

G-230602b / RH20 SM50 LB-50 High-Durability AR
