Prototype G-230603

Partial-Reflecting Mirror + AR Coating

Combination of Partial-Reflecting Mirror Coating and AR Coating

Required reflection/transmission can be customized depends on the specifications.

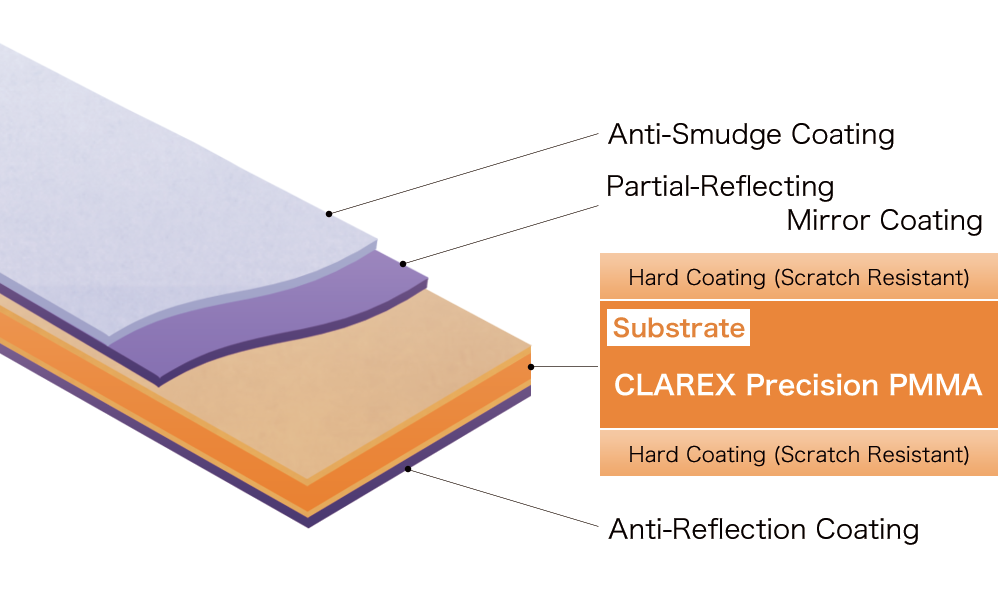

Configuration

Example of Use

Front Cover for HMD (Head Mount Display)

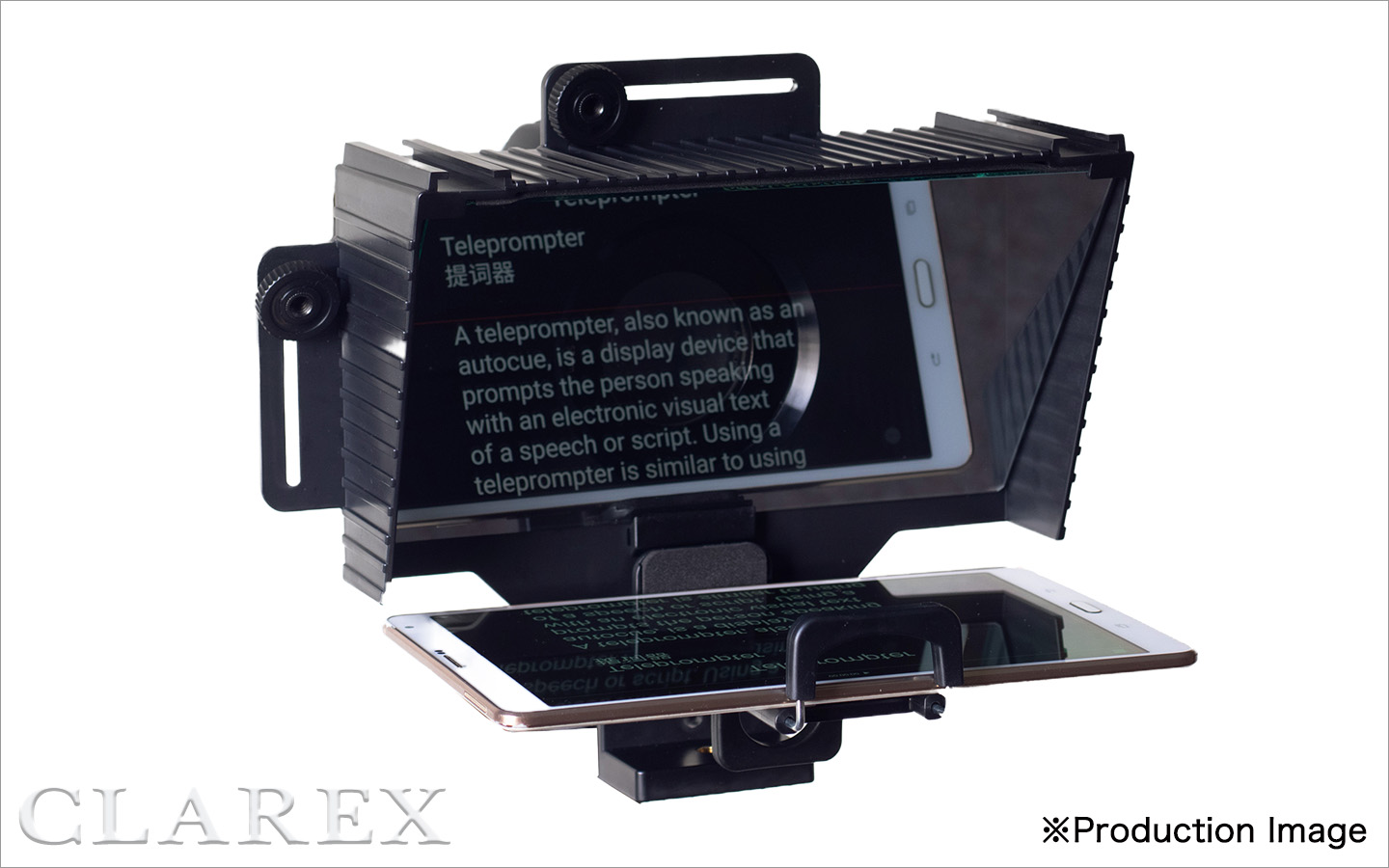

Combiner for prompter

Display cover for outdoor monitor, etc.

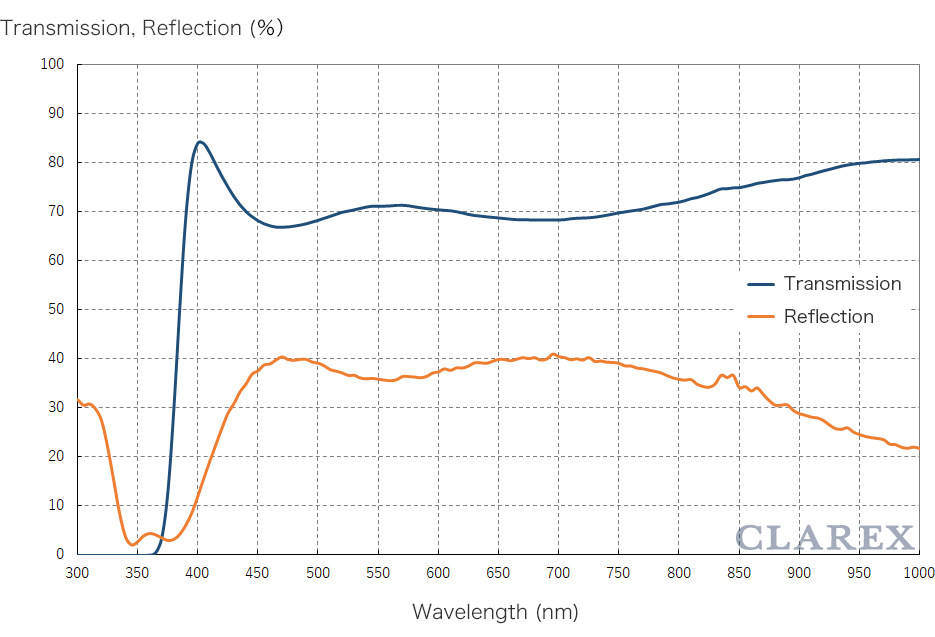

Optical Data

G-230603 RH20 001 / Partial-Reflecting Mirror + AR

※ The optical transmission curve in the figure is the measured value of 1.0mm thick sample and is not for guarantee.
