CLAREX Products Line-Up
Below lists are the basic CLAREX product categories. Please refer to each product category for the detail, and feel free to ask for customization or new development.
DR⅁uCX (Diffusion Filter)
CLAREX DR⅁uCX LIGHT DIFFUSION FILTER is an optical light diffusion filter combining light transmission with uniformly controlled diffusion. CLAREX DR⅁uCX LIGHT DIFFUSION FILTER has a *color temperature of 6750K and it is adaptable to any backlit display.
* Illuminant : D65 standard light source
Features
- Uniformly controlled diffusion.
- Available with light transmission from 45% ~90%.
- * Color temperature of 6750K and expected a contrast enhancement.
- Prevent Newton's ring.
- Excellent Optical Characteristics and light resistance.
- Blocks UV ray.
- Variety of color is available for customization.
* Illuminant : D65 standard light source
Application
Light diffusion filter for color or monochrome LCD Display, LED lighting, etc.
Basic Line-Ups
Thickness (mm) |
Size (mm) |
DR-45CX | DR-50CX | DR-55CX | DR-60CX | DR-65CX | DR-70CX | DR-75CX | DR-80CX | DR-85CX | DR-90CX |
---|---|---|---|---|---|---|---|---|---|---|---|
2.0 | 1000e1000 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
400e550 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
1.5 | 1000e1000 | - | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
400e550 | - | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
1.0 | 1000e1000 | - | - | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
400e550 | - | - | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
0.8 | 400e550 | - | - | - | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
0.6 | 400e550 | - | - | - | - | ○ | ○ | ○ | ○ | ○ | ○ |
0.5 | 400e550 | - | - | - | - | ○ | ○ | ○ | ○ | ○ | ○ |
0.4 | 400e550 | - | - | - | - | - | ○ | ○ | ○ | ○ | ○ |
0.3 | 400e550 | - | - | - | - | - | - | ○ | ○ | ○ | ○ |
T Please ask separately if you have any inquiry about material not indicated with ○.

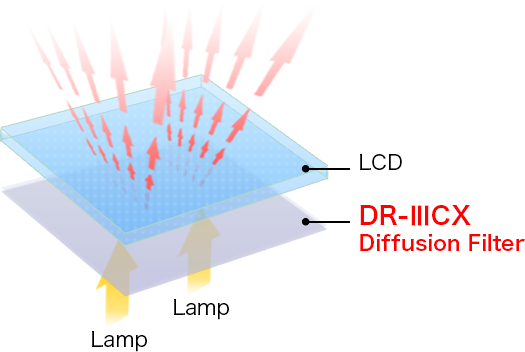

Construction
![DR⅁uCX (Diffusion Filter)](images/dr3cx_cons.png)

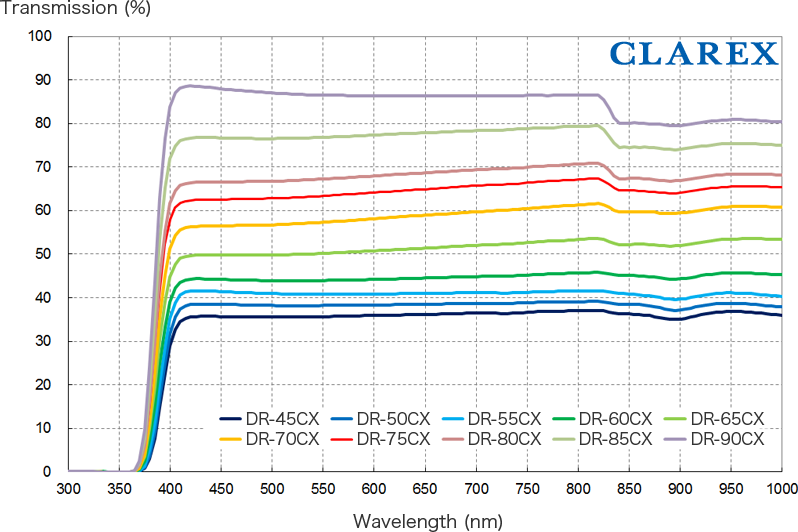

Optical Data
DR⅁uCX (Diffusion Filter)DR⅁uCX (Diffusion Filter)
![DR⅁uCX (Diffusion Filter)](images/dr3cx_data.png)
T These are our experimental measured values in 1.0mm thick.
T Value provided cannot be guaranteed in your application due to circumstances beyond our control.
Optical Data Download
CLAREX DR⅁uCX (Diffusion Filter)
T For browsing method of PDF file, please click here.
If you have any inquiries or requests, please contact us.
