DR⅁uSX (Diffusion Filter)
CLAREX DR⅁uSX DIFFUSION FILTER is a Shade Diffuser for backlight with high intensity light source. CLAREX DR⅁uSX DIFFUSION FILTER shades lamp-image of high intensity light source and diffuse uniformly.
Features
- Available as thin as 0.5 mm, yet able to block up to 95% of light and provide effective diffusion.
- Extremely uniform surface brightness.
- Available with light transmission from 5% ~40%.
- Prevent Newton's ring.
- Excellent Optical Characteristics and light resistance.
- Blocks UV ray.
- Variety of color is available for customization.
Application
Light diffusion filter for color or monochrome LCD Display, LED lighting, etc.
Basic Line-Ups
Thickness (mm) |
Size (mm) |
DR-05SX | DR-10SX | DR-15SX | DR-20SX | DR-25SX | DR-30SX | DR-35SX | DR-40SX |
---|---|---|---|---|---|---|---|---|---|
1.0 | 400e550 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
0.8 | 400e550 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
0.5 | 400e550 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |

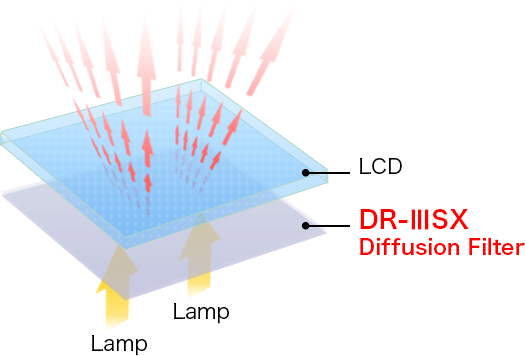

Construction
![DR⅁uSX (Diffusion Filter)](images/dr3sx_cons.png)

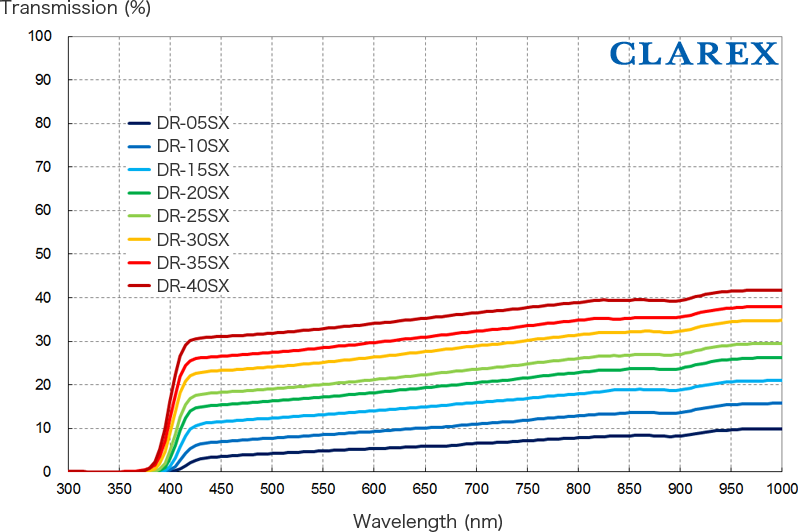

Optical Data
DR⅁uSX (Diffusion Filter)
![DR⅁uSX (Diffusion Filter)](images/dr3sx_data.png)
T These are our experimental measured values in 1.0mm thick.
T Value provided cannot be guaranteed in your application due to circumstances beyond our control.
Optical Data Download
CLAREX DR⅁uSX (Diffusion Filter)
T For browsing method of PDF file, please click here.
If you have any inquiries or requests, please contact us.
