See_through Products
CLAREX See-Through Screen is a see-through (highly transparent) type rear projection screen that allows you to show the background behind the screen while projecting an image.
By combining it with objects or people, it is possible to create a high level of spatial presentation.
In addition, the high transparency of CLAREX See-Though Screen makes it possible to create an image as if it is floating.
Two types of variations are available so that you can choose according to the usage, such as product display and live presentation.
Features
- Thin and lightweight, made of acrylic.
- Highly transparent monolithic (single layer) screen.
- High-quality image projection is possible by combining proprietary acrylic sheeting techniques and light distribution controlling techniques.
- Unlike the screen with lens structure, there is no need to fix the projection distance.
- Transmittance and haze can be customized and adjusted.
- Low scintillation.
- Easy to process such as molding, cutting, drilling and NC processing.
Product Detail
| Material | PMMA (Acrylic) |
|---|---|
| Thickness | 2.0mm、3.0mm ※ for other thickness, please ask. |
| Max. Dimension | 2000×3000mm |
| Surface Hardness | Over 2H (pencil hardness) |
Line-Up
| Haze | Total Light Transmission | |
|---|---|---|
| B-1506 | 22 | 78％ |
| B-1517 | 15 | 84％ |
※ For customization and adjustment such as haze adjustment and NC processing, please ask.
Application
Live Presentation, Product Display, Installation event, etc.

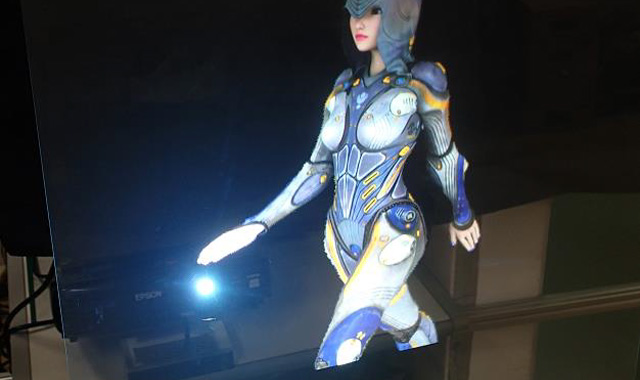

Examples of Products

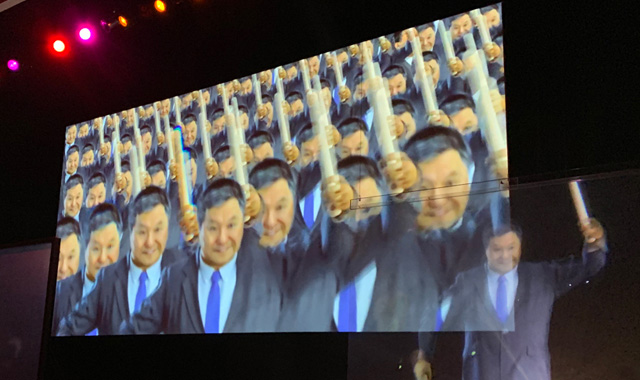

Live Presentation
ISPRM 2019 (13th International Society of Physical and Rehabilitation Medicine World Congress) – Opening Live Presentation.
Installation & Concert Event
If you have any questions about the see-through screen, please feel free to contact us.
