Blue Ocean® technology delivers high-level video performance
CLAREX Blue Ocean® Screen is manufactured by a new method which combines proprietary acrylic sheeting techniques and light distribution controlling techniques developed specifically for High Functional Projection Screens.
01
Screen Function
02
Mechanical Function
03
Environmental Function
- We have our own recycling facilities and can recycle at a yield rate of almost 100%.
04
Safety Function
05
Various manufacturing methods
Depending on the conditions, we can also produce pellets for injection Extrusion.
CLAREX Blue Ocean® Technology provides true-color reproduction, high resolution and image depth which gives audience a high level of visual experience. Please ask for customization both optical and mechanical according to your application.
We will introduce the Blue Ocean® Screen product lineup, the features of each product, and example applications.
Rear Projection Screen
CLAREX BOS-C0451 provides images with good natural coloration because it reproduces the true color and almost no scintillation on the screen. Also, the wide viewing angle and excellent uniformity enables to use in many situation.
MIHARAYASUHIRO -Installations- Ophelia has a drean at Louvre Paris
Click on the picture to enlarge.
Line-Up
- Optical customization and/or 2D and 3D forming customization is available. Please ask your sales representatives.

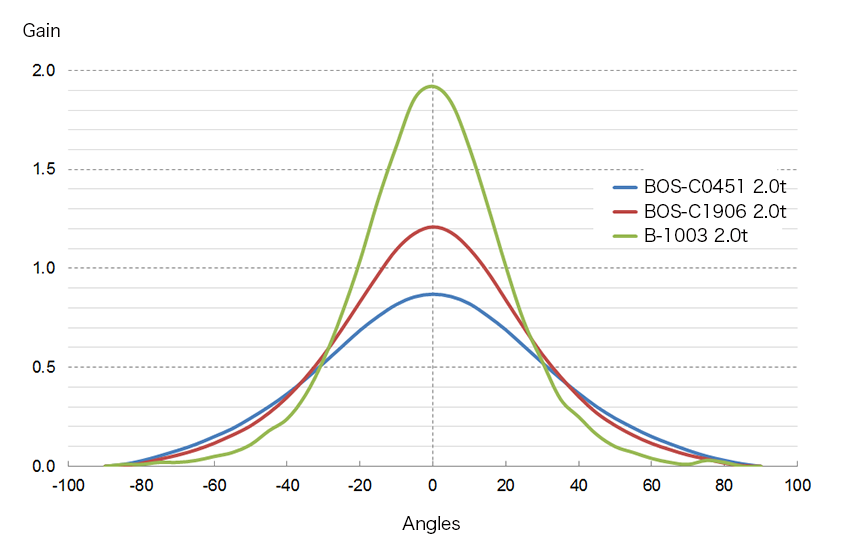

Viewing Angles
| Lineup | Transmission（％） | Peak Gain | 1/2 Angle |
|---|---|---|---|
| B-1003 | 50.0 | 1.7 | 25 |
| BOS-C1906 | 47.0 | 1.2 | 30 |
| BOS-C0451 | 45.0 | 0.85 | 42 |
Size
Max：200 inch size.
- Screen frame is available as an option. Please ask your sales representatives.
Thickness
| 16：9 | 100″ or below – 2.0mm / Over 100″ – 3.0mm |
| 4：3 | 80″ or below – 2.0mm / Over 80″ – 3.0mm |
Application
Theater, Simulator
Examples of Products
200 inch size
Simulator
BOS for Injection Molding
This is the screen utilizing the workability of acrylic material. By forming in three-dimensional, it creates eye-catching impact in amusement or advertising market. Pelletizing BOS material for injection molding is also available so that more complex shapes are possible to make.
Examples of Products
Dome Type
Face Type
Please ask us about customization for optical performance and/or molding.
