AR (Anti-Reflection) Coat Filter
CLAREX AR Coat Filter is treated with a multi-layer AR coating which prevents light reflection. Additional coatings prevent surface scratching and smudging.
Product usage：Car navigation system (front panel)
Features
Application
Optical Filters (Camera lens for mobile application, etc.) / Sensor Filters (Barcode scanner sensor, etc.) / Display Protection Window (LCD, VFD, OLED monitor, etc.)
Thickness
0.3mm～5.0mm
Initial Value
| Properties | Measurement Value | Test Method (ASTM) |
|---|---|---|
| Total Light Transmittance (%) | 98 | D-1003 |
| Reflectance (%) | 0.5（at550nm） | – |
| Pencil Hardness | 6H | D-3363 |
| Repellency | 110゜ | Contact Angle |
- These are the measured value of CLAREX MHA 2100 001 2.0mm thickness sheet, and are not for guarantee.
- (Spectral Transmission measured with NDH4000 Nippon Denshoku Industries Co., Ltd.)
Durability
| Properties | Test Condition | Result |
|---|---|---|
| Heat Resistance | 85℃×250hr | No change in appearance |
| Cold Resistance | -40℃×250hr | No change in appearance |
| Thermal Shock | -40℃⇔Normal Temp⇔85℃ (300min x 200cycles) | No change in appearance |
| Moisture Resistance | 60℃×90％RH×250hr | No change in appearance |
- These are the measured value of CLAREX MHA 2100 001 2.0mm thickness sheet, and are not for guarantee.
Chemical Resistance
| Chemical Drop Test (24hrs on Anti-Smudge surface) | Artificial Sweat (+) | No Change in appearance Change in appearance | |
| Artificial Sweat (-) | |||
| Distilled Water | |||
| Sea Water | |||
| Strong Alkali |
- These are the measured value of CLAREX MHA 2100 001 2.0mm thickness sheet, and are not for guarantee.
Optical Data

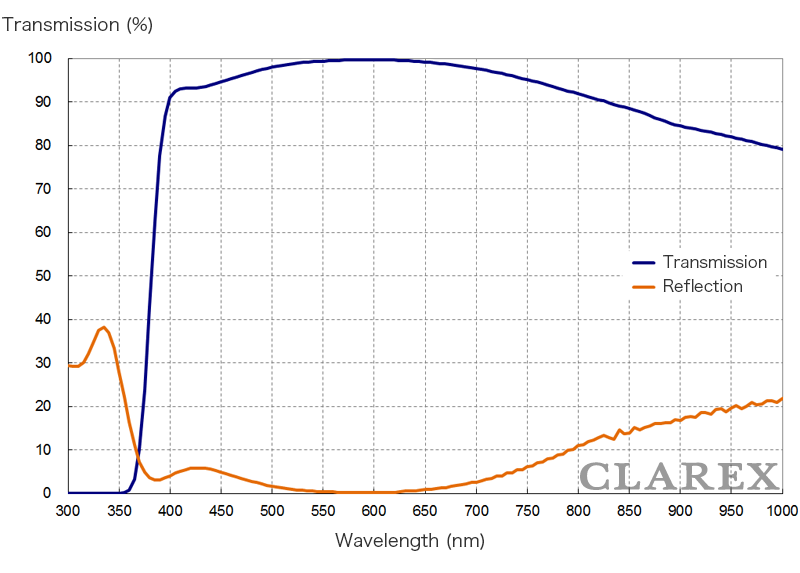

AR (Anti-Reflection) Coat Filter：MHA2100 001 (Both-side AR coat, One-side Anti Smudge)
※These are our experimental measured values in 1.0mm thick.
※Value provided cannot be guaranteed in your application due to circumstances beyond our control.

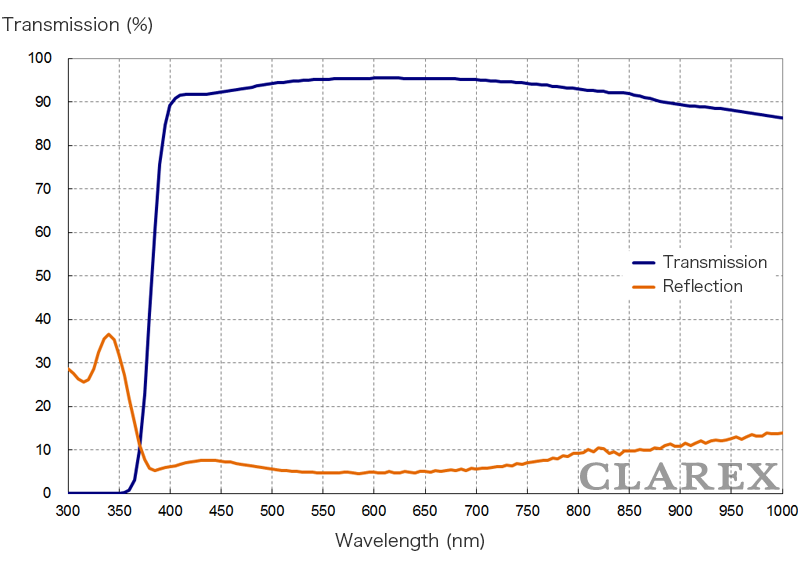

AR (Anti-Reflection) Coat Filter：MHA2000 001 (One-side AR coat, One-side Anti Smudge)
※These are our experimental measured values in 1.0mm thick.
※Value provided cannot be guaranteed in your application due to circumstances beyond our control.
Optical Data Download
- For browsing method of PDF file, please click here.
About Product Handling
Please click here →「How to handle AR coat Filter」
