CLAREX UV Cut Filter

CLAREX Products Line-Up

Below lists are the basic CLAREX product categories. Please refer to each product category for the detail, and feel free to ask for customization or new development.

UV Cut Filter

CLAREX UV Cut Filter protects displays from ultra-violet rays. There are 4 types of UV Cut filters available depends on the absorption range.

Features

Absorb UV ray in range from 370nm ～ 480nm.
High transparency.
Excellent Optical Characteristics and light resistance.
Many types of coatings are available to combine. (Hard Coat, AR Coat, etc.)
Surface texture can be changed. (Flat/Glossy surface to Non-Glare surface texture)

Application

Optical Lens / Monitor Display Protection Window / etc.

Thickness

0.2mm～5.0mm
For other optical characteristics, please ask for customization.

Basic Line-Ups

N-169（Absorb 380nm or below）
N-190（Absorb 390nm or below）
N-113（Absorb 400nm or below）
N-039（Absorb 470nm or below）

For other optical characteristics, please ask for customization.

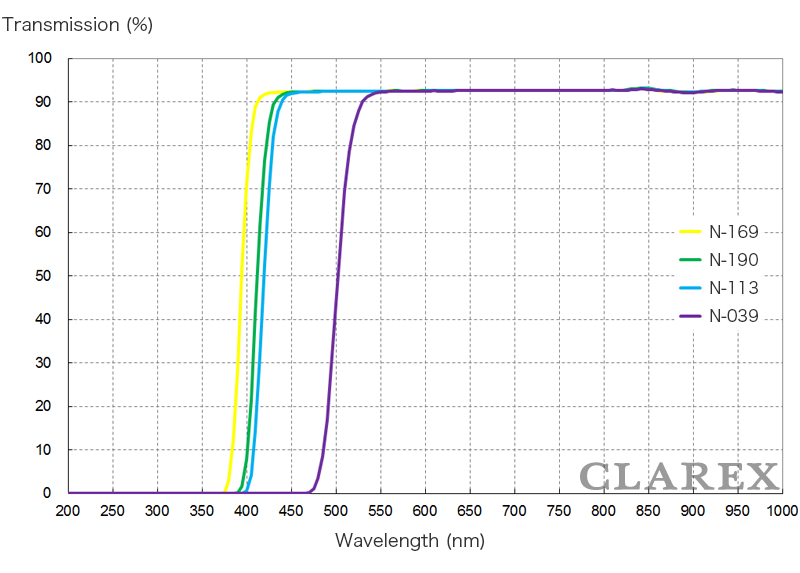

Optical Data

UV Cut Filter

※These are our experimental measured values in 1.0mm thick.
※Value provided cannot be guaranteed in your application due to circumstances beyond our control.

Optical Data Download

CLAREX UV Cut Filter　Download

For browsing method of PDF file, please click here.
