CLAREX Light Shielding Diffusion Filter (DRIIISX)

CLAREX Products Line-Up

Below lists are the basic CLAREX product categories. Please refer to each product category for the detail, and feel free to ask for customization or new development.

Light Shielding Diffusion Filter (DRIIISX)

CLAREX DRⅢSX DIFFUSION FILTER shades lamp-image of high intensity light source and diffuse uniformly.

Features

  • Variety of thickness and light transmission to choose from
  • Available as thin as 0.5mm, yet able to shade light up to 95% and provide efficient diffusion
  • Light transmission available from 5%～40% (in 5% increments)
  • Prevent Newton’s rings (interference fringes)
  • Excellent light resistance and durability
  • Variety of colors available for customization

Application

Direct-lit backlights, automotive display, LED lighting, etc.

Basic Line-Ups

Thickness
（mm）		Size
（mm）		DR-05SXDR-00SXDR-15SXDR-20SXDR-25SXDR-30SXDR-35SXDR-40SX
1.0400×550
0.8400×550
0.5400×550
  • Please ask separately if you have any inquiry about material not indicated.

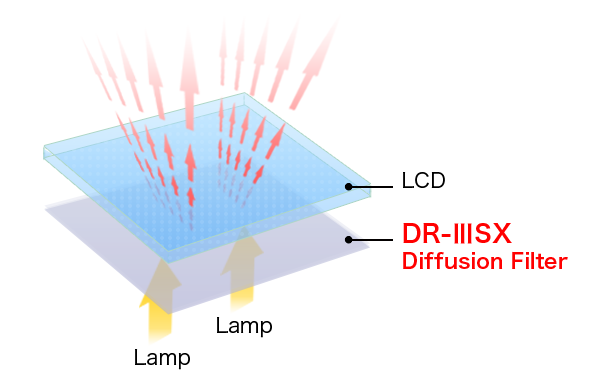

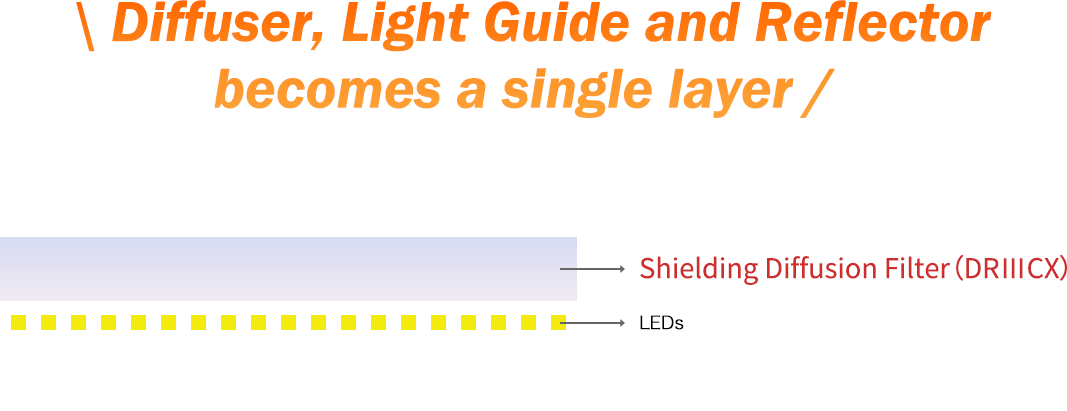

Construction

reference：
Conventional１
reference：
Conventional２

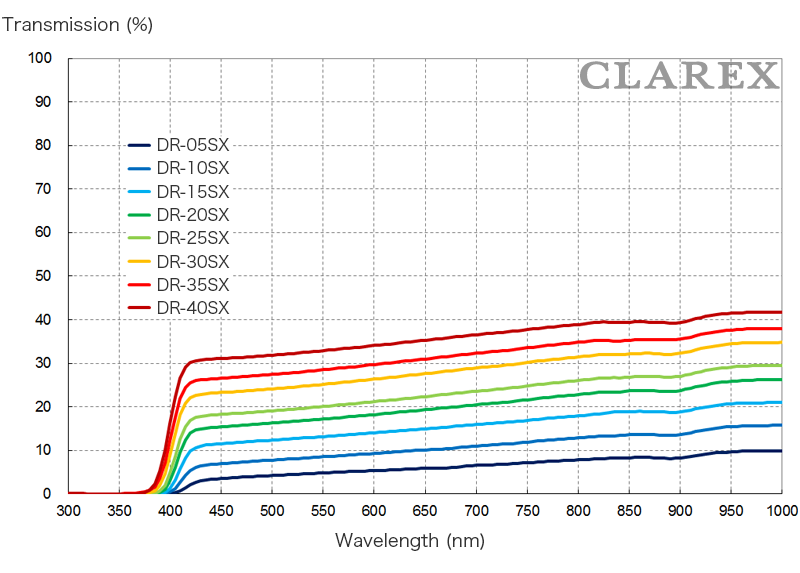

Optical Data

Light Shielding Diffusion Filter (DRIIISX)

※These are our experimental measured values in 1.0mm thick.
※Value provided cannot be guaranteed in your application due to circumstances beyond our control.
Shimadzu (UV-3600i Plus)
Optical Data Download
CLAREX Light Shielding Diffusion Filter (DRⅢSX)　Download
  • For browsing method of PDF file, please click here.
