CLAREX NIR (Infra-red) Filter

CLAREX Products Line-Up

Below lists are the basic CLAREX product categories. Please refer to each product category for the detail, and feel free to ask for customization or new development.

NIR (Infra-red) Filter

CLAREX NIR Filter transmits infra-red rays and absorbs visible rays. There are 5 types of infra-red filters which transmit through the ranges of 670nm to 860nm.

Product usage：Laser Radar

Features

  • Transmit Infra-red ray.
  • Excellent Optical Characteristics and light resistance.
  • No malfunction the optical sensor due to birefringence or double refraction.
  • Many types of coatings are available to combine. (Hard Coat, AR Coat, etc.)
  • Surface texture can be changed. (Flat/Glossy surface to Non-Glare surface texture)

Application

Remote Controller / Security IR detection sensor / Eye tracking sensor / etc.

Thickness

0.5mm～5.0mm

Basic Line-Ups

  • NIR-70N
  • NIR-75N
  • NIR-80N
  • NIR-85N2
  • NIR-90N

For other optical characteristics, please ask for customization.

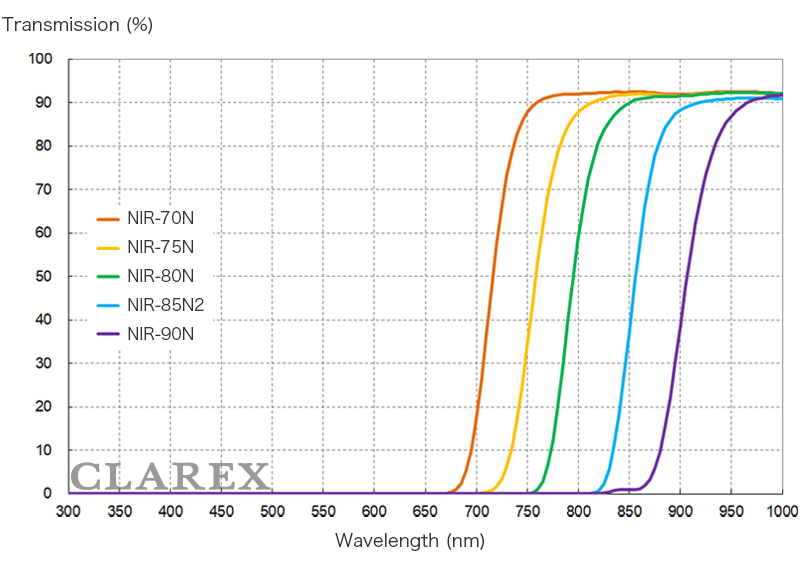

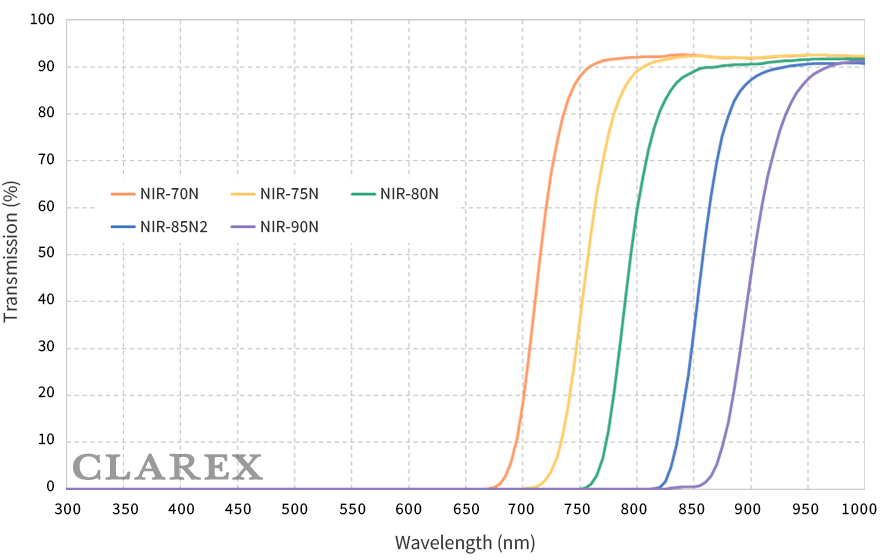

Optical Data

NIR (Infra-red) Filter


※These are our experimental measured values in 1.0mm thick.
※Value provided cannot be guaranteed in your application due to circumstances beyond our control.
Optical Data Download
CLAREX NIR (Infra-red) Filter　Download
