CLAREX UV Transmission Filter

CLAREX Products Line-Up

Below lists are the basic CLAREX product categories. Please refer to each product category for the detail, and feel free to ask for customization or new development.

UV Transmission Filter

CLAREX UV Transmission Filter transmits ultra-violet rays at 260nm.

Features

  • Transmit Ultra-violet ray. (approx. 80% at 300nm)
  • Excellent Optical Characteristics and light resistance.
  • May be combined with Hard Coat and/or other Optical Coatings.
  • May be combined with Flat (glossy) surface and/or Non-Glare surface sheet.

Application

Optical Disc substrates / X-ray & UV-ray photoresist / Sterilization Filter / etc.

Thickness

0.2mm～5.0mm

Basic Line-Ups

  • S-0
  • S-0-L

For other optical characteristics, please ask for customization.

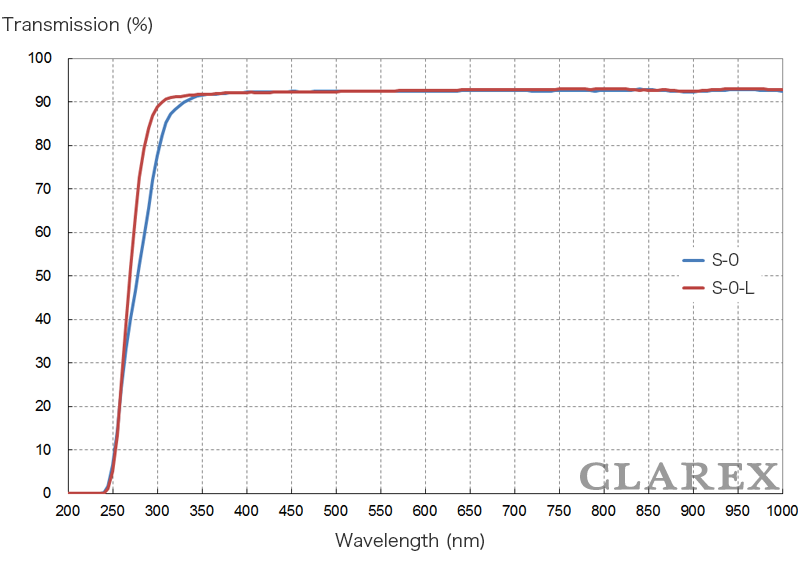

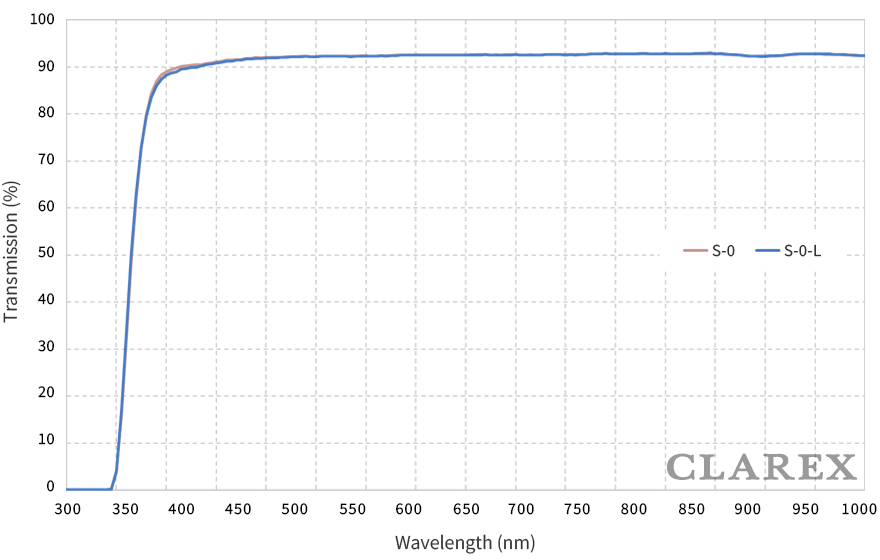

Optical Data

UV Transmission Filter S-0、S-0-L


※These are our experimental measured values in 1.0mm thick.
※Value provided cannot be guaranteed in your application due to circumstances beyond our control.

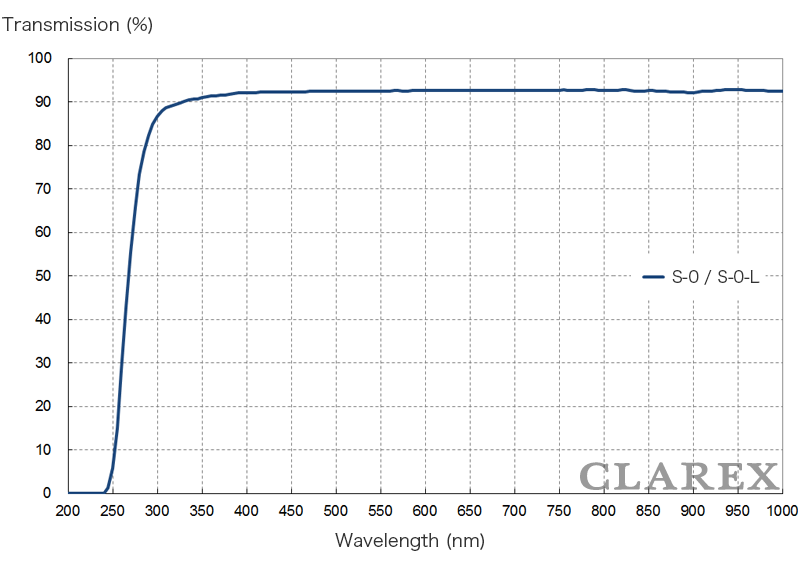

Light Resistance Data

UV Transmission Filter S-0、S-0-L after 500hrs of UV exposure


※These are our experimental measured values in 1.0mm thick.
※Value provided cannot be guaranteed in your application due to circumstances beyond our control.
Optical Data Download
CLAREX UV Transmission Filter　Download
  • For browsing method of PDF file, please click here.
