CLAREX Products Line-Up
Below lists are the basic CLAREX product categories. Please refer to each product category for the detail, and feel free to ask for customization or new development.
DRⅢCX (Diffusion Filter)
CLAREX DRⅢCX LIGHT DIFFUSION FILTER is an optical light diffusion filter combining light transmission with uniformly controlled diffusion. CLAREX DRⅢCX LIGHT DIFFUSION FILTER has a *color temperature of 6750K and it is adaptable to any backlit display.
* Illuminant : D65 standard light source
Features
* Illuminant : D65 standard light source
Application
Light diffusion filter for color or monochrome LCD Display, LED lighting, etc.
Basic Line-Ups
| Thickness（mm） | Size （mm） | DR-45CX | DR-50CX | DR-55CX | DR-60CX | DR-65CX | DR-70CX | DR-75CX | DR-80CX | DR-85CX | DR-90CX |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.0 | 1000×1000 | ||||||||||
| 400×550 | |||||||||||
| 1.5 | 1000×1000 | ||||||||||
| 400×550 | |||||||||||
| 1.0 | 1000×1000 | ||||||||||
| 400×550 | |||||||||||
| 0.8 | 400×550 | ||||||||||
| 0.6 | 400×550 | ||||||||||
| 0.5 | 400×550 | ||||||||||
| 0.4 | 400×550 | ||||||||||
| 0.3 | 400×550 |
- Please ask separately if you have any inquiry about material not indicated with.

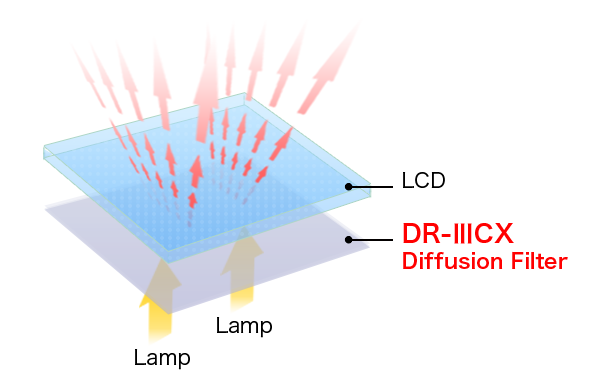

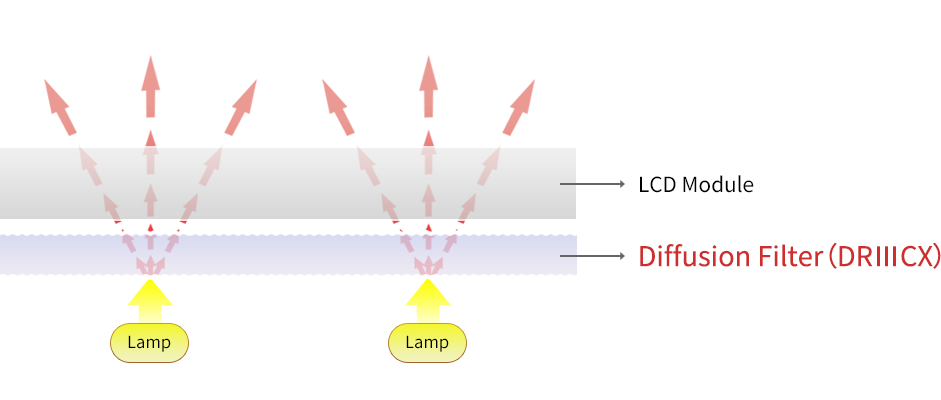

Construction

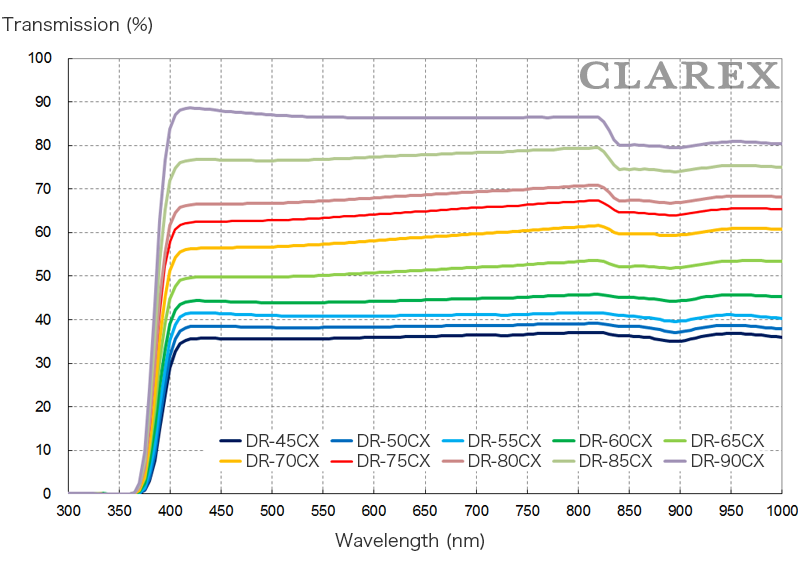

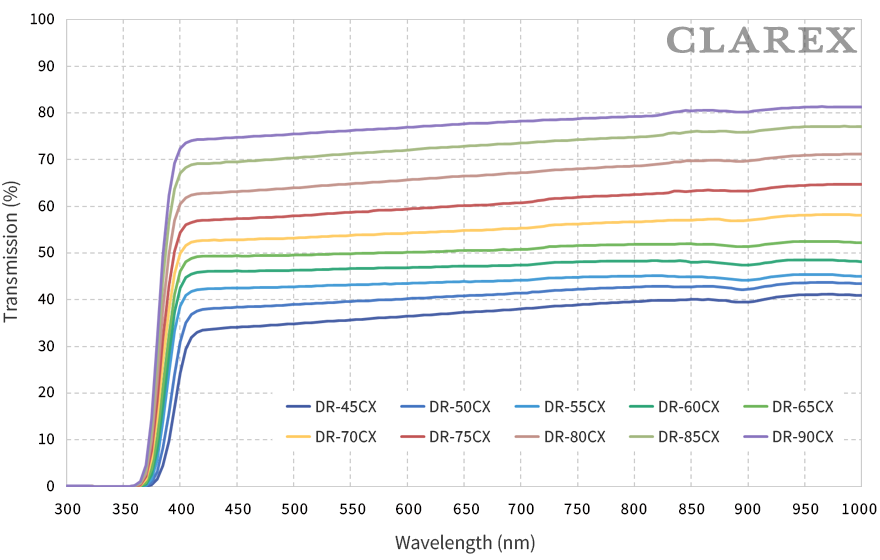

Optical Data
DRⅢCX (Diffusion Filter)
※Value provided cannot be guaranteed in your application due to circumstances beyond our control.
Optical Data Download
- For browsing method of PDF file, please click here.
